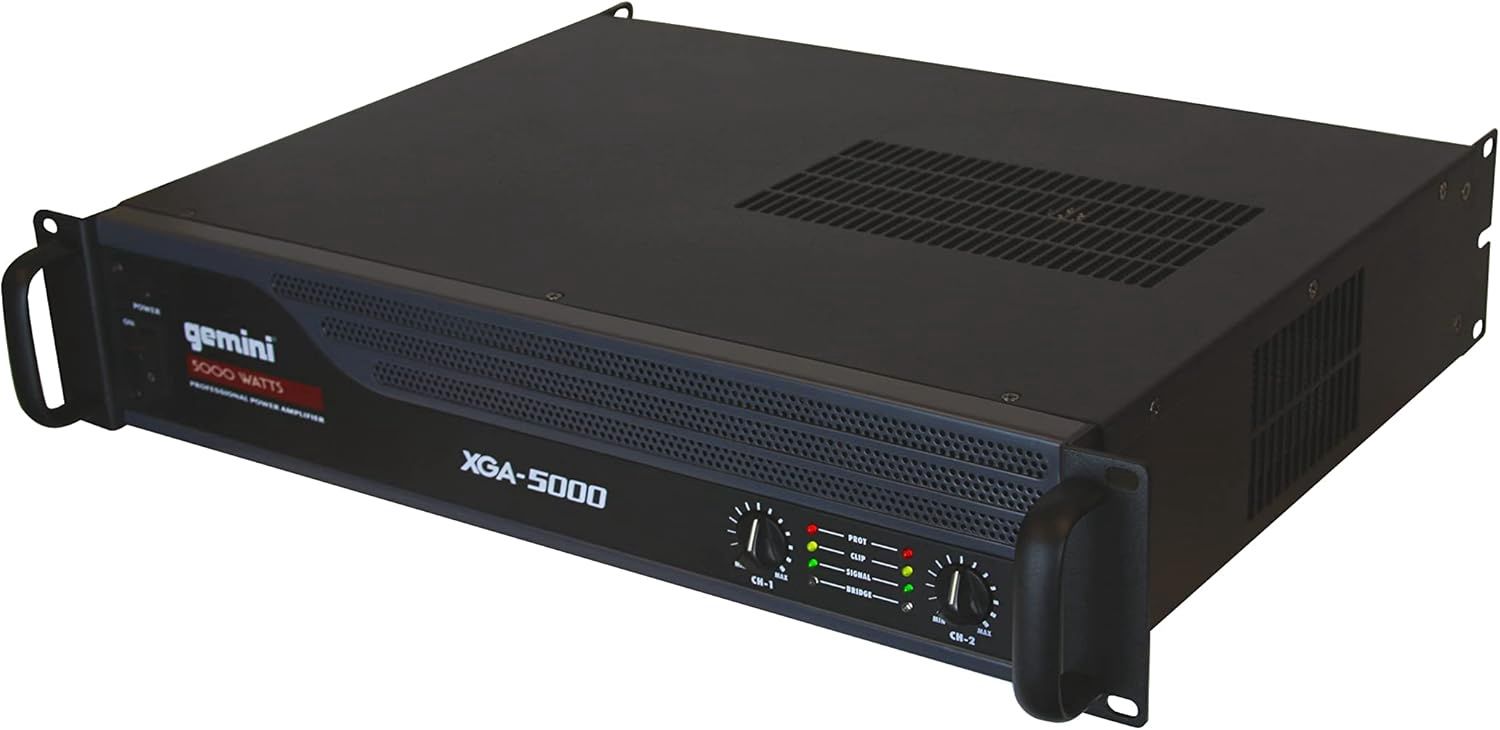

XGA5000 GEMINI 2CH AMPLIFIER

Product Overview

The Gemini XGA-5000 amplifier offers clean, reliable power in a durable, lightweight enclosure. If you demand professional amplification performance, the XGA-5000 is perfect for delivering pure, consistent wattage night after night.

With 5000 watts of Instant Peak Power (1100 watts RMS), the XGA-5000 is ideal for powering PA systems and DJ rigs. To ensure seamless, reliable performance, the amp features:

• Front-to-rear airflow and a variable-speed cooling fan for thermal stability.
• A limiter circuit switch, DC output protection, and short circuit protection.

For true connecting convenience, the XGA-5000 boasts:

• XLR and ¼-inch balanced inputs.
• RCA unbalanced inputs.
• Three Speakon outputs.

Additionally, the unit provides front panel indicators for Signal, Clip, Protect, and Bridge, plus level controls for channels 1 and 2. Selectable modes for Stereo and Mono Bridge give you even more flexibility, while its sleek, lightweight design ensures total portability.

Gemini XGA-5000 Features:

• 5000 Watt IPP (Instant Peak Power) High Power output to drive professional loudspeakers without clipping.
• Front-to-rear airflow and cooling fan for thermal stability and reliability.
• XLR and ¼” balanced and RCA unbalanced inputs.
• Limiter circuit switch for amp output protection.
• Stereo and Mono Bridge modes.
• Variable speed fan for low noise.
• Comprehensive front panel indicators including Signal, Clip, Protect, and Bridge.
• 3 Speakon outputs for Channels A/B/Bridge.
• 5-way binding banana plug channel outputs.
• Bridge control switch.
• DC output protection and Short circuit protection.
• Ground lift switch.
• Total Harmonic Distortion: Less than 0.1%.

Gemini XGA-5000 Specifications:

• Frequency Response: 10Hz ~ 50kHz ±1.5dB.
• Signal to Noise (LF / HF): >90dB.
• THD (LF / HF): > 0.1%.
• Input Sensitivity: 0.77v.
• Maximum Input Level: 21dBv/9v.
• Damping Factor (F=1kHz 8ohms): >350.
• Input Impedance: 20K ohms.
• Fuse: 5mm x 20mm: AC 115v/230v 50~60Hz.
• Output Stereo 8 ohms: 2 x 400W RMS.
• Output Stereo 4 ohms: 2 x 550W RMS.
• Output Bridged 8 ohms: 1100W RMS.
• Dimensions: 19”W x 13.8”D x 3.5”H.
• Net Weight: 26.8 lbs.
