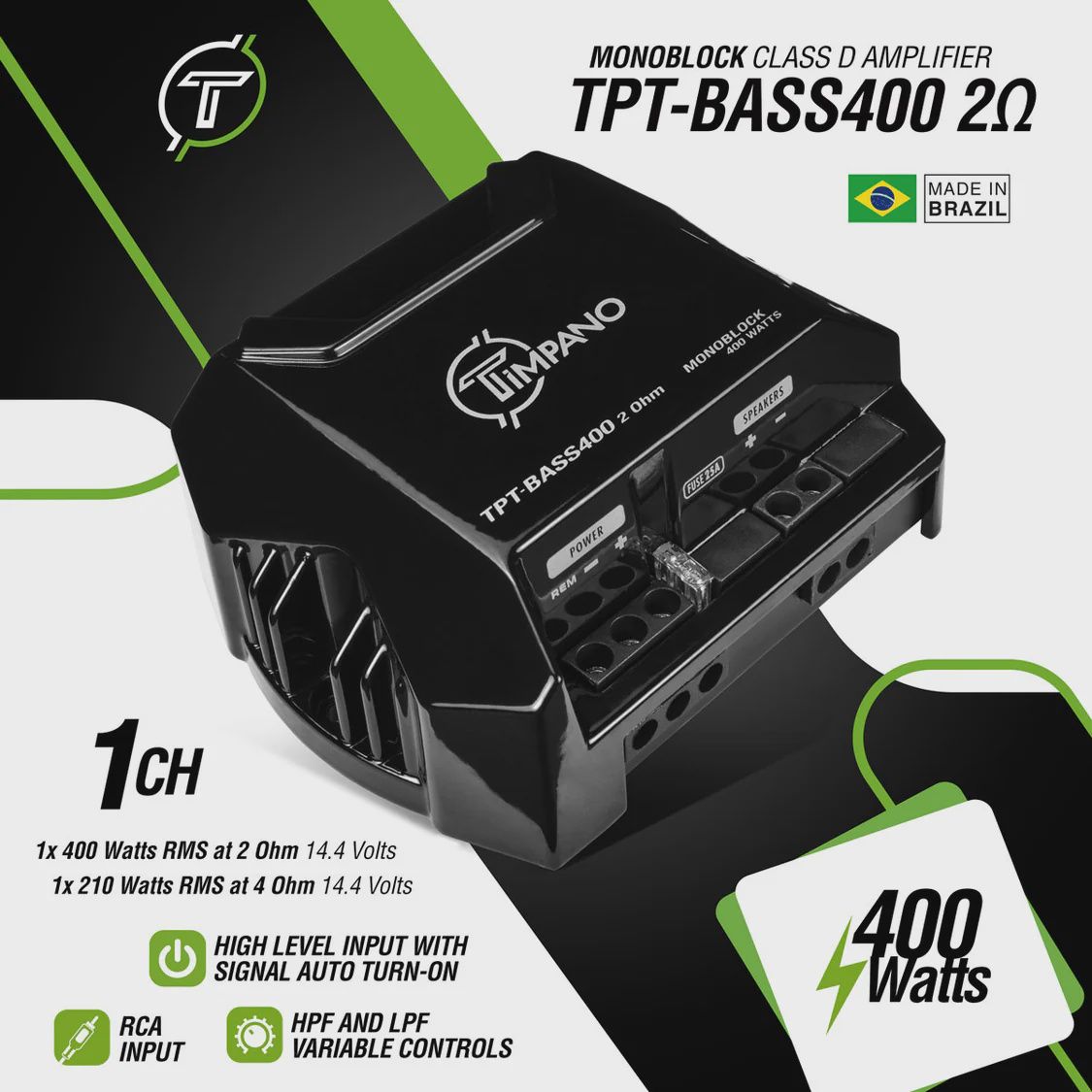

TPT-BASS400 2 OHM TIMPANO

Timpano 400 Watts Car Audio Bass Amplifier TPT-BASS400 2 Ohm – 12 volts Monoblock Class D Car Amp

Anybody in need of a car audio bass amplifier that can fit just about anyplace in their car and won’t break the bank should consider this Timpano Bass Series car amplifier.

Key Features

• POWER:

  • Designed to run a single dual 4 Ohm subwoofer, powering up to 400 Watts of pure RMS power.
  • High efficiency provides more power with less battery consumption.

• FEATURES:

  • Heavy-duty power and speaker terminals.
  • Built-in variable crossover filters for easy tuning:
    • SUBSONIC (HPF) filter 5 to 35Hz.
    • LPF 35 to 250Hz.
  • No need for an external crossover or DSP.
  • Variable frequency dial and BASS BOOST at chosen frequency up to +15 dB.
  • Level controls to adjust signal input from the source.

• DESIGN:

  • Digital full bridge Class D Brazilian technology.
  • Compact footprint with high-speed MOSFET power supply and top-line transistors.
  • Dimensions: 3.93″ depth x 5.02″ width x 2.00″ height.

• HIGH LEVEL INPUTS with SIGNAL AUTO TURN ON:

  • Connects directly to systems using speaker-level inputs.
  • Signal auto turn-on eliminates the need for remote turn-on wiring.

Advanced Engineering

The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. This allows for higher power-to-footprint ratios, and the compact chassis does not compromise output power or stability.

To handle even the most demanding bass sessions, this amplifier features:

• Sturdy heatsink.
• Heavy-duty power and ground inputs.
• High current PCBs.
• Premium internal components.

Additional Information

• Number of Channels: 1
• Power:
  • 400 Watts RMS Power at 2 Ohm 14.4 Volts
  • 210 Watts RMS Power at 4 Ohm 14.4 Volts
• Supply Voltage: 9V ~ 15V
• Frequency Response: 5Hz ~ 250KHz
• Crossover Filters:
  • Low Pass Filter: 35Hz ~ 250KHz
  • Subsonic Filter (HPF): 5Hz ~ 35Hz
• Bass Boost:
  • Frequency: 35Hz ~ 60Hz
  • Gain: 0 dB ~ +15 dB
• Input Impedance: RCA 10k Ohm / Wire 1K Ohm
• Signal to Noise: > 90 dB
• Impedance Output: 2 Ohm
• Musical Consumption: 17A
• Bass Consumption: 43A
• Dimensions (L x W x H): 3.93” x 5.02” x 2.00”
• Weight: 1.11 lbs

Installation Guidelines

Before installing, follow the instructions for optimal performance. If you have questions, contact us.

Important Installation Tips:

• Ensure the amplifier is switched off before adding or removing connections to prevent equipment damage.
• Keep cables away from ignition cables, electronic injection modules, and starter switches to avoid noise interference.
• Use 100% Copper cables and high-quality connectors for sound quality and fidelity.
• Avoid damaging cables by ensuring they do not touch sharp metal edges.
• Important: Use a 40A fuse 12 inches away from the battery as a safety precaution.

Power Rating Information

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power was tested with a 40Hz sinusoidal signal and THD ≤ 10%, with resistant load referring to the indicated measurements.

Note: Manufacturing variations in electronic components and processes may lead to slight measurement differences. This amplifier is designed for music applications (with subwoofers). Load tests (resistant load) are not recommended.
