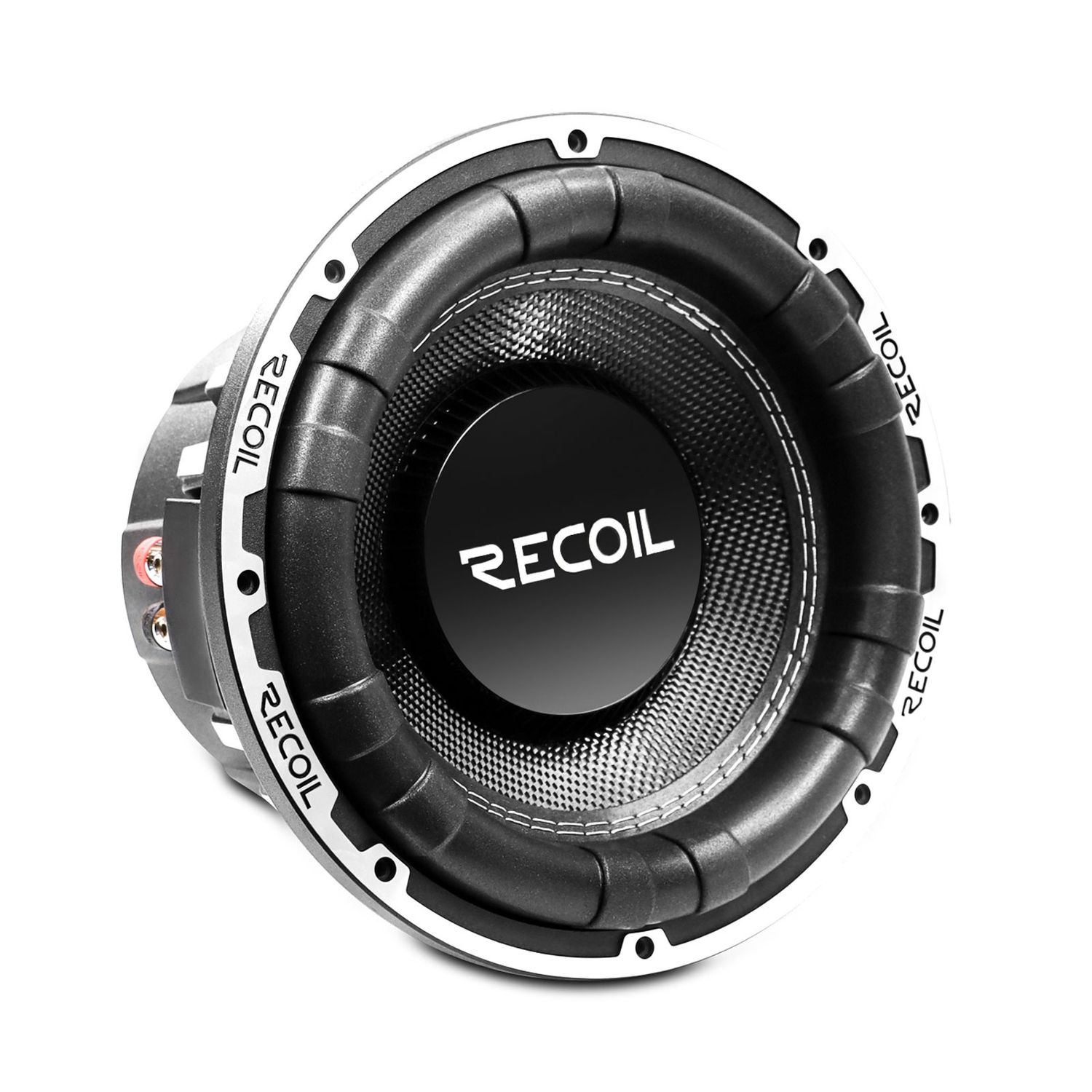

ECHO MAX SERIES SUBWOOFERS

Recoil Echo Max series subwoofers are packed with the latest technology and performance features. They provide powerful advantages in motor linearity and suspension behavior. Combined with a very efficient cooling structure, these subwoofers deliver reduced distortion and outstanding dynamic balance.

Built with high output at their core, these subwoofers will deliver unrelenting bass in your vehicle.

Key Features:

• Aluminum die-cast basket design eliminates resonance
• Double-stacked powerful ferrite magnets
• Extended pole piece and bumped backplate ventilation for rapid heat dissipation
• Protective PVC textured magnet covers
• Custom copper terminals accept up to 4 AWG speaker wire
• Black-coated high temperature 3” voice coil for high power handling
• Composite 3K glass fiber & semi-pressed pulped cone
• Massive ridge strengthened surround provides extensive linear displacement
• Double layers dust cap design for super reliability

Specifications:

• Size: 12.0"
• Impedance: 4 + 4 Ohms (Dual Voice Coil)
• RMS Power: 1200 W
• Peak Power: 2400 W
• Frequency Response: 35 Hz – 400 Hz
• Qts: 0.51
• Qes: 0.56
• Qms: 5.70
• FO: 36 Hz
• Vas: 42.7 L
• Sensitivity: 87.4 dB
• Xmax: 13 mm
• Overall Depth: 230.8 mm / 9.1 in
• Mounting Depth: 192.5 mm / 7.6 in
• Overall Width: 325 mm / 12.8 in
• Cutout Diameter: 288 mm / 11.34 in
