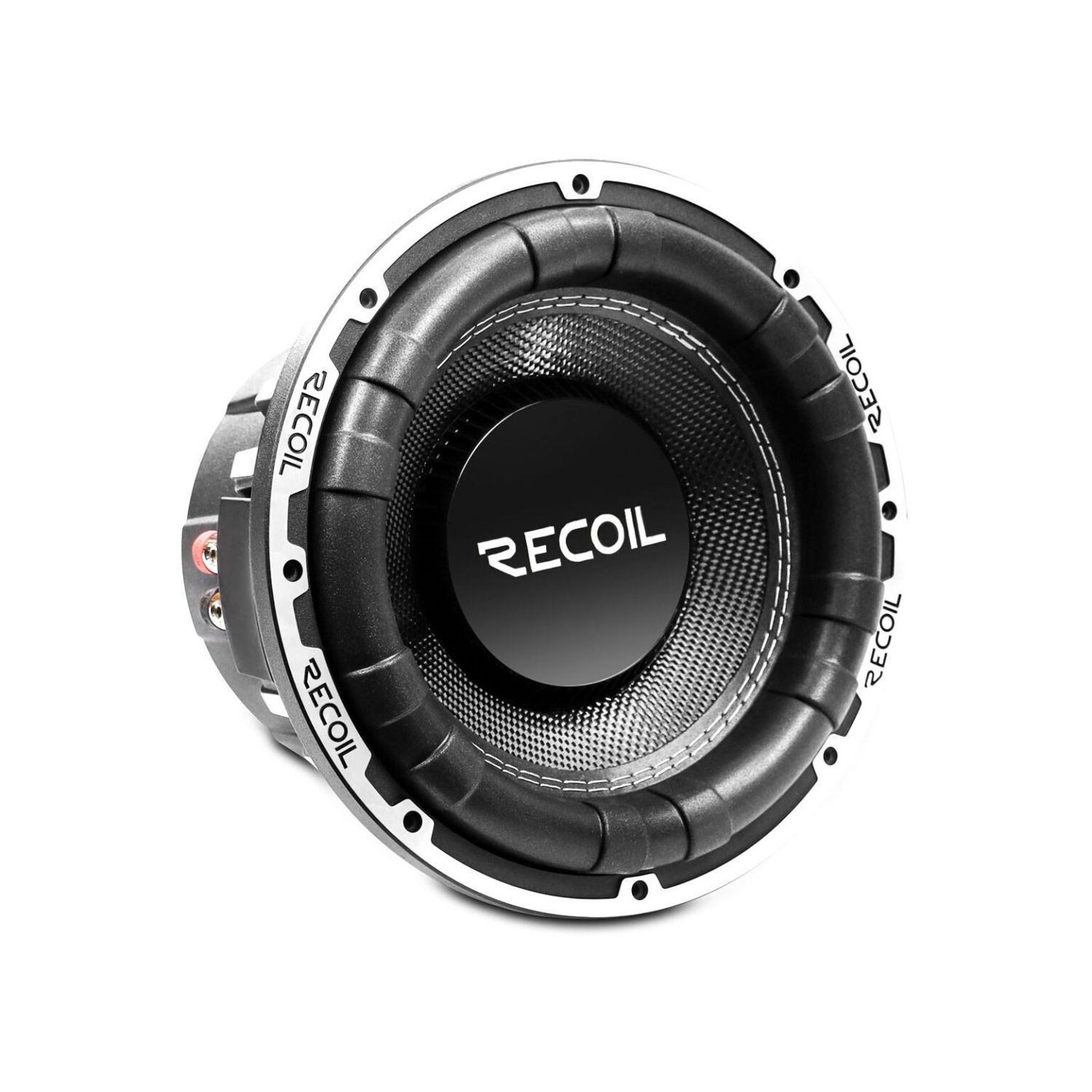

SW10D2 RECOIL 10-INCH DUAL 2-OHM SUBWOOFER

ECHO MAX SERIES SUBWOOFERS

Recoil Echo Max series subwoofers are packed with the latest technology and performance features. They provide powerful advantages in motor linearity and suspension behavior. Combined with a very efficient cooling structure, they deliver reduced distortion and outstanding dynamic balance.

These subwoofers are built with high output at their core and will deliver unrelenting bass in your vehicle.

Key Features:

• Aluminum die-cast basket design eliminates resonance.
• Double-stacked powerful ferrite magnets for enhanced performance.
• Extended pole piece and bumped backplate ventilation for rapid heat dissipation.
• Protective PVC textured magnet covers for durability.
• Custom copper terminals accept up to 4 AWG speaker wire.
• Black-coated high temperature 3” voice coil for high power handling.
• Composite 3K glass fiber & semi-pressed pulped cone for superior sound quality.
• Massive ridge strengthened surround provides extensive linear displacement.
• Double layers dust cap design for super reliability.

SPECIFICATION

• Size: 10.0"
• Impedance: 2 + 2 Ohms (Dual Voice Coil)
• RMS Power: 1000 W
• Peak Power: 2000 W
• Frequency Response: 38 Hz – 500 Hz
• Qts: 0.39
• Qes: 0.42
• Qms: 5.88
• FO: 40 Hz
• Vas: 20.2 L
• Sensitivity: 86.7 dB
• Xmax: 13 mm
• Overall Depth: 203.6 mm / 8 in
• Mounting Depth: 170.5 mm / 6.7 in
• Overall Width: 266.4 mm / 10.5 in
• Cutout Diameter: 234.6 mm / 9.2 in
