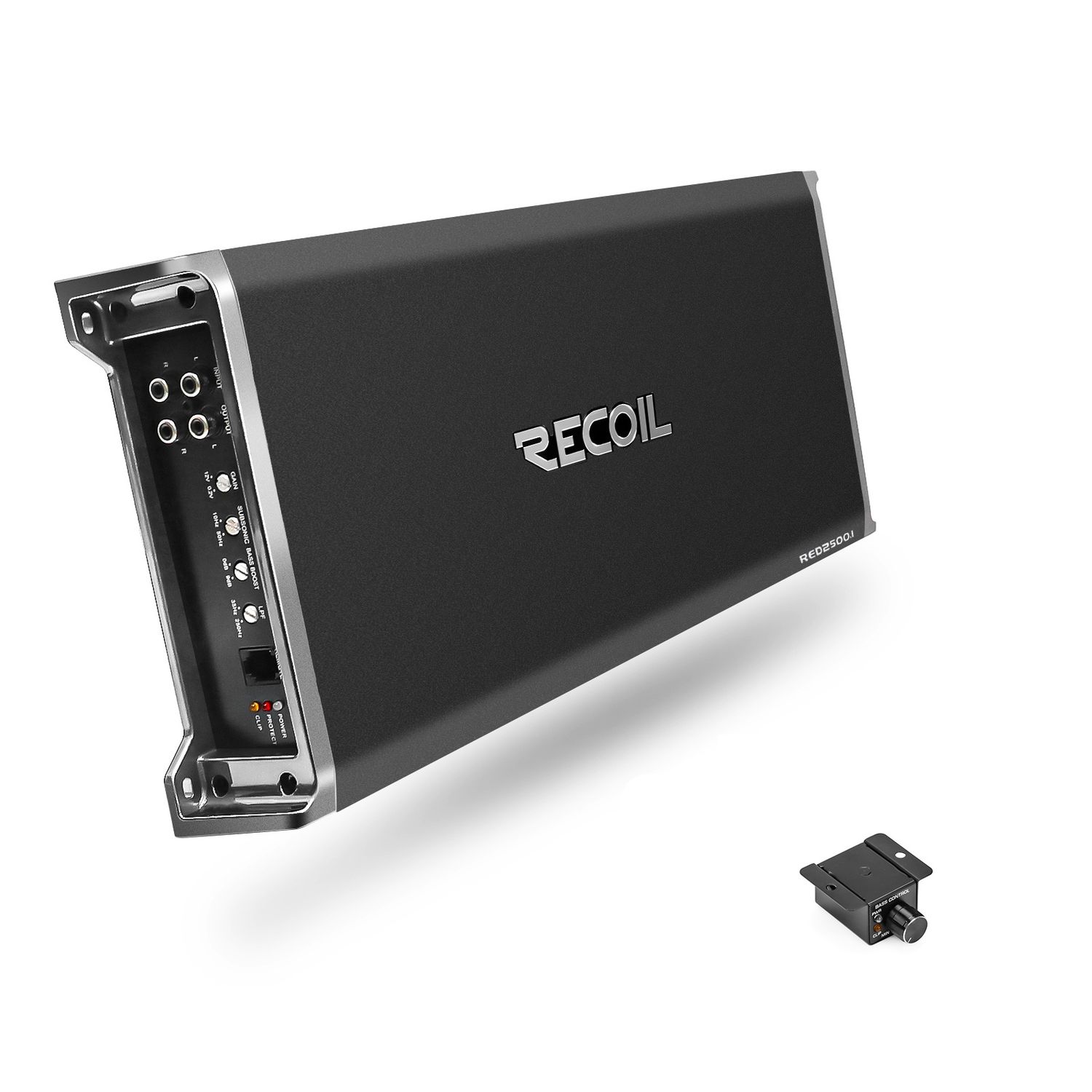

RED2500.1 RECOIL CLASS D MONO-BLOCK 5000W

Dominant Power and Reliability

Recoil engineered the RED2500.1 Class D mono-block subwoofer amplifier to excel in both power and reliability. The RED2500.1D is 1-Ohm stable and utilizes a wide array of premium components that make it extremely powerful and dependable, such as its high-speed MOSFET power supply and advanced PCB board layout. It is conservatively rated at 2500 watts RMS power at a 1-ohm load.

Key Features

• Oversized 1/0 gauge power and ground terminals for maximum current flow.
• Built-in user control panel featuring:
  • Bass EQ
  • Variable adjustment tunings for gain level, low-pass filter, and subsonic filter.
• 4-way protection circuitry to safeguard against:
  • Electrical shortage
  • Overheating
  • Low voltage
  • And more

Specifications

• 1-Ohm Stable Car Subwoofer Amplifier
• Class-D Monoblock Subwoofer Amplifier
• 4-Way Protection Circuitry: Thermal, Voltage, Speaker, DC
• RMS Power:
  • 2 Ohms: 1,500 Watts x 1 Channel (14.4v)
  • 4 Ohms: 840 Watts x 1 Channel (14.4v)
  • 1 Ohm: 2,527 Watts x 1 Channel (14.4v)
• Peak Power at 1 Ohm: 5,000 Watts x 1 Channel (14.4v)
• High-Speed MOSFET Power Supply
• Soft Turn-On Circuit
• Frequency Response: 12Hz – 260Hz
• Signal-to-Noise Ratio: 98dB
• Bass Boost: 0 – 9dB
• Low-Pass Filter (Variable): 40Hz – 260Hz
• Subsonic Filter: 12Hz – 55Hz
• Remote Bass Knob & Wire Included
• 1/0 Gauge Power and Ground Terminals
• Fuse Rating: 250 Amp
• Dimensions: 19.7″ x 7.6″ x 2.2″ (500mm x 193mm x 56mm)

This amplifier is designed to deliver exceptional performance and reliability for your car audio system while giving you full control over its powerful features.
