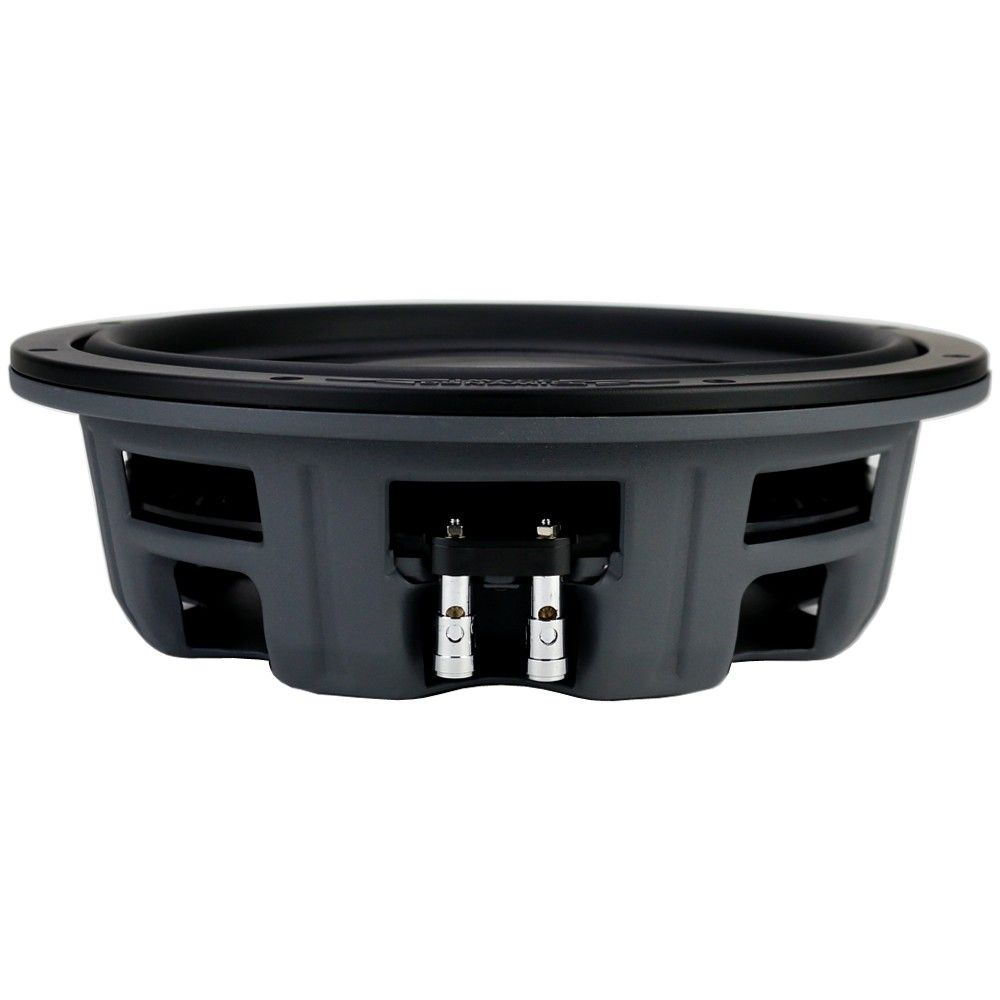

IDQS Subwoofers redefine the performance standard for small thin mount subwoofers. With a very high linear excursion created from the precise motor and suspension design, the IDQS Subwoofers provide you with great sound quality, power handling, and accurate low-frequency reproduction in the smallest of spaces.

Features:

• High Excursion Design: Allows acoustically linear bass output at all rated power levels.
• Parabolic Santoprene Surround: Ensures cone linearity and control.
• Poly/Mica Cone: Delivers strong, distortion-free bass reproduction while still capturing all the musical nuances.
• Nomex Spider: Provides consistent control throughout the piston range and the life of the woofer.
• Poly Carbonate Neck Joint: Handles more raw power without mechanical failure or flex, while isolating heat from the BASV voice coil former and the cone.
• American Made Flat Wound Extended Voice Coil: Offers higher magnetic flux (strength) and more voice coil "traction" in the magnetic gap, with over 1.75” of linear travel in the magnetic gap.
• Extended Y-35 Motor Structure: Enables the voice coil to move freely without mechanical bottoming out while producing a powerful flux field.
• Field Replaceable Cone Assembly: Can be changed in 10 minutes using only 16 screws and alignment shims provided in the recone kits.

Parameters:

• Power Handling:

  • 125W RMS
  • 250W Peak

• VC Impedance: 4-Ohms + 4-Ohms

• Test Impedance: 2-Ohm

• Driver Displacement: 0.03

• Fs: 53 Hz

• SD: 213.82 sqCM

• Vas: 5.379 Ltr

• Cms: 82.862 M/N

• Mms: 95.378 g

• BL: 5.999

• Qms: 4.896

• Qes: 1.631

• Qts: 1.223

• No: 0.0473%

• Spl: 82 dB

• Xmax: 7mm

• Voice Coil:

  • Diameter: 1.5"
  • Height: 0.87"
  • Type: Kapton Former
  • Wire: Copper
  • DC Resistance: 1.73 Ohms
  • Inductance at 1kHz: 0.32 MH

• Frequency Response: 50-500Hz

• Resonant Frequency: 53 Fs Hz

• HE-Magnetic Gap Height: 0.314"

• Motor Structure: 21.69 oz

• Mounting Depth: 3.11"

• Cutout Diameter: 7.18"

This subwoofer combines cutting-edge technology and precision engineering to deliver exceptional performance in compact spaces.
