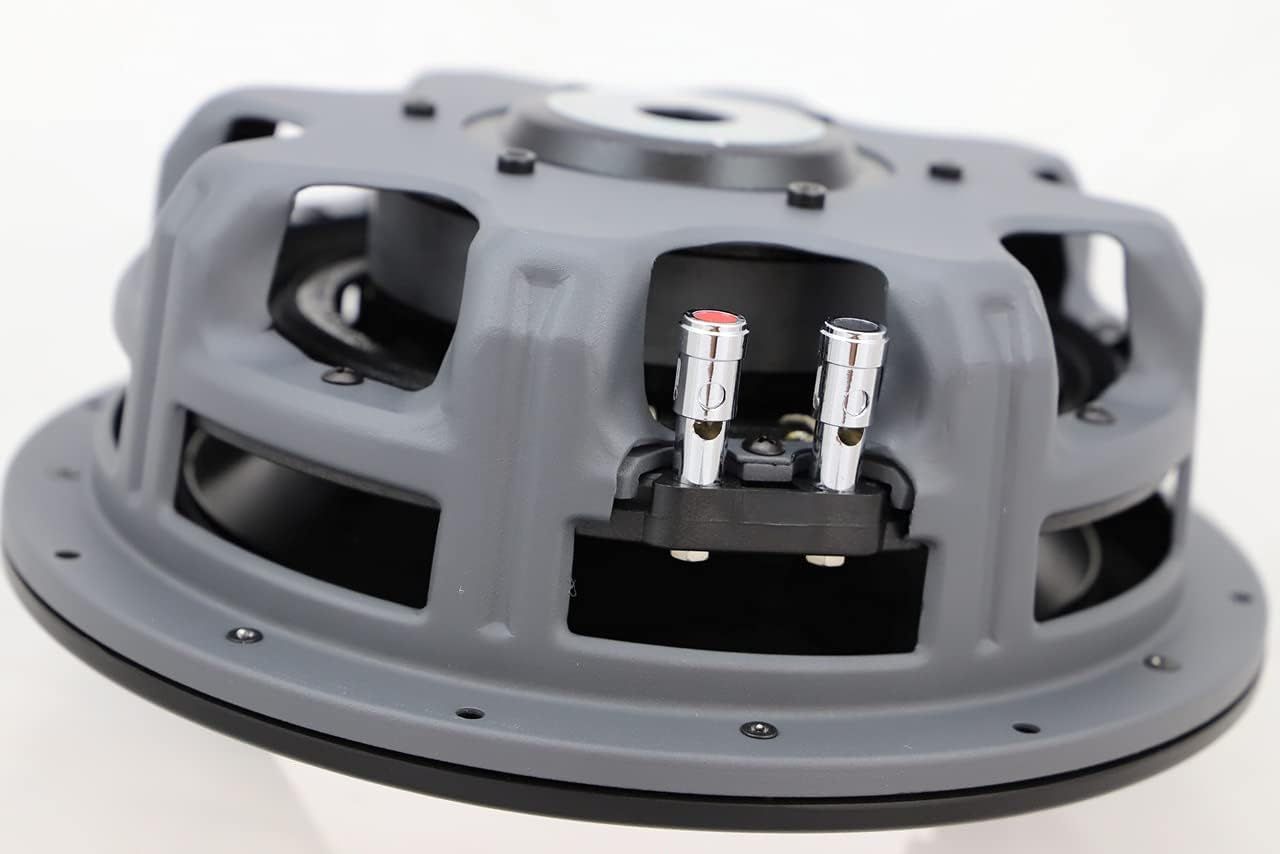

IDQS Subwoofers redefine the performance standard for small thin mount subwoofers. With a very high linear excursion created from the precise motor and suspension design, the IDQS Subwoofers provide you with great sound quality, power handling, and accurate low-frequency reproduction in the smallest of spaces.

Features

• High Excursion Design: Allows acoustically linear bass output at all rated power levels.
• Parabolic Santoprene Surround: Ensures cone linearity and control.
• Poly/Mica Cone: Provides strong and distortion-free bass reproduction while still reproducing all the musical nuances.
• Nomex Spider: Ensures consistent control throughout the piston range and life of the woofer.
• Poly Carbonate Neck Joint: Handles more raw power without mechanical failure or flex, while isolating the heat from the BASV voice coil former from the cone.
• American Made Flat Wound Extended Voice Coil: Offers higher magnetic flux (strength) and more voice coil “traction” in the magnetic gap with over 1.75” of linear travel in the magnetic gap.
• Extended Y-35 Motor Structure: Enables the voice coil to move freely without mechanical bottoming out, while producing a very powerful flux field.
• Field Replaceable Cone Assembly: Can be changed in 10 minutes with only 16 screws and alignment shims provided in the recone kits.

Parameters

Power Handling

• 200W RMS
• 350W Peak

VC Impedance

• 4-Ohms + 4-Ohms

Test Impedance

• 2-Ohm

Technical Specifications

• Driver Displacement: 0.054
• Fs: 50 Hz
• SD: 390.57 sqCM
• Vas: 14.239 Ltr
• Cms: 65.736 M/N
• Mms: 159.759 g
• BL: 8.777
• Qms: 6.233
• Qes: 1.216
• Qts: 1.017
• No: 0.141%
• Spl: 84 dB
• Xmax: 7.5mm

Voice Coil

• Diameter: 2.0"
• Height: 0.98"
• Type: Kapton Former
• Wire: Copper

Electrical Properties

• DC Resistance: 1.9 Ohms
• Voice Coil Inductance at 1kHz: 0.34 MH

Frequency Response

• 50-500Hz

Resonant Frequency

• 50 Fs Hz

Magnetic Gap

• HE-Magnetic Gap Height: 0.393"
• Motor Structure: 42.95 oz

Dimensions

• Mounting Depth: 3.5"
• Cutout Diameter: 9.56"
