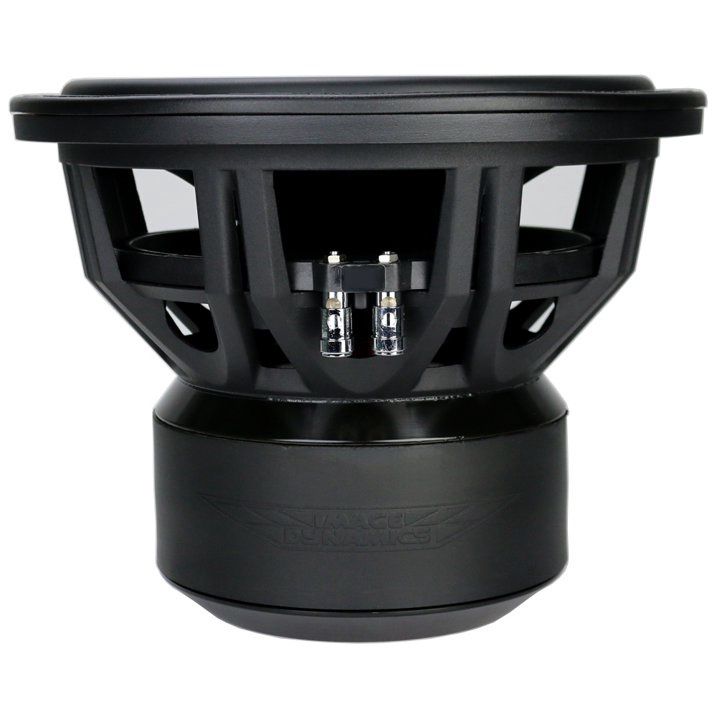

IDMAX 12 IMAGE DYNAMICS 12"

IDMAX 12D2V4 Subwoofer

IDMAX Series 12" Dual 2Ω Subwoofer V4

IDMAX subwoofers were engineered with the perfect blend of power and grace. They are capable of reproducing the subtlest details at even the lowest frequencies, while withstanding extremely high output levels for a performance that is truly unique.

Developed with the sound enthusiast in mind, this subwoofer delivers clean and loud sound. It creates unmatched levels of sound pressure while maintaining total tonal control, setting it apart from the competition.

Key Features:

• Size: Available in 12"
• Impedance: Dual 2Ω model
• Field Replaceable Cone Assembly: No glue required—simply remove the 16 screws and use the alignment shims

Specifications

General Dimensions:

• Height: 8.15"
• Width: 12.40"
• Depth: 8.15"
• Cutout Diameter: 11.02"
• Mounting Depth: 8.15"

Performance:

• Sensitivity (1W/1M): 85db
• Frequency Response: 30-500Hz
• Power Handling (RMS/Peak): 500W / 1000W

Materials and Components:

• Voice Coil Size: 2"
• Material: Paper Cone
• Magnet Size: 400 oz.

Technical Details:

• BL: 8.415
• Xmax: 19mm
• Spl: 85
• No: 0.158%
• Qts: 0.758
• Qes: 0.89
• Qms: 5.418
• Mms: 210.8
• Cms: 147
• Vas: 62.44
• SD: 547.39
• Fs: 26
• Test Impedance: 2
• VC Impedance: 2

MADE IN THE USA

Experience superior craftsmanship and performance with the IDMAX 12D2V4 Subwoofer, proudly manufactured in the USA.
