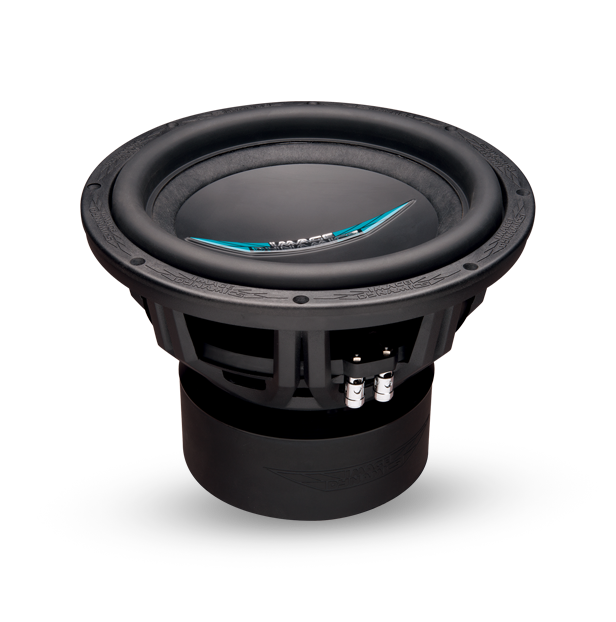

IDMAX 10 IMAGE DYNAMICS 10"

IDMAX 10D4V4 Subwoofer Overview

The IDMAX Subwoofer combines power and grace, delivering an unparalleled audio experience. Engineered for exceptional performance, it reproduces even the subtlest details at the lowest frequencies, while withstanding extremely high output levels. This unique blend of precision and durability sets it apart in the world of subwoofers.

Designed with the sound enthusiast in mind, the IDMAX Subwoofer offers clean and loud audio with unmatched sound pressure levels and total tonal control. Whether you're a casual listener or an audiophile, this subwoofer is built to impress.

Key Features:

• Available Sizes: Dual 2Ω models in 10" and 12".
• Field Replaceable Cone Assembly: No glue required—simply remove the 16 screws and use the alignment shims for easy replacement.
• Made in the USA: Proudly manufactured with top-tier quality.

Specifications:

• Nominal Impedance: Dual 2Ω
• BL: 7.954
• Inputs: DVC
• Height: 7.68"
• Width: 11.06"
• Depth: 7.68"
• Voice Coil Size: 2"
• Material: Paper Cone
• Magnet Size: 400 oz.
• Sensitivity (1W / 1M): 85dB
• Dimensions (in Inches): 11.06"
• Cutout Diameter: 9.65"
• Mounting Depth: 7.68"
• Xmax: 19mm
• SPL: 85
• No: 0.133%
• Qts: 0.661
• Qes: 0.765
• Qms: 4.659
• Mms: 151.7
• Cms: 162
• Vas: 31.97
• SD: 380.13
• Fs: 27
• Test Impedance: 1.62
• VC Impedance: 2
• Size: 10"
• Frequency Response: 32-500Hz
• Power Handling (RMS/Peak): 500W / 1000W

The IDMAX 10D4V4 Subwoofer is the perfect choice for anyone seeking a high-performance subwoofer that delivers exceptional sound quality and durability. Whether you're upgrading your car audio system or building a custom setup, this subwoofer ensures a powerful and immersive listening experience.
