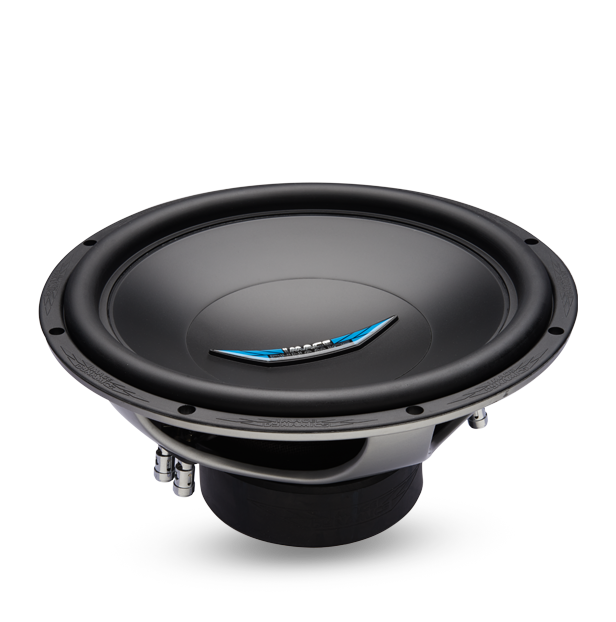

ID12 IMAGE DYNAMICS 12"

ID12D2V4 Subwoofer

ID Series 12" Dual 2Ω Subwoofer V4

The ID Series Subwoofers deliver exceptional bass response in any enclosure, striking the perfect balance of quality and reliability for lower power applications—all at an affordable price. These subwoofers are engineered with the meticulous attention to detail and high standards you expect from Image Dynamics.

Key Features:

• Available Models: Dual 4Ω or Dual 2Ω
• Sizes: 8", 10", and 12"

Specifications:

• Nominal Impedance: Dual 2Ω/4Ω
• BL: 12.65
• Inputs: DVC
• Height: 5.67"
• Width: 12.25"
• Depth: 5.67"
• Voice Coil Size: 2"
• Material: Poly Cone
• Magnet Size: 127 oz.
• Dimensions (in Inches): 12.25"
• Cutout Diameter: 11.0"
• Mounting Depth: 5.67"
• Xmax: 14 mm
• SPL: 86
• No: 0.273%
• Qts: 0.628
• Qes: 0.698
• Qms: 5.561
• Mms: 207.8
• Cms: 61.58
• Vas: 21.65
• SD: 497.60
• Fs: 45
• Test Impedance: 1.9 (Tested Individually)
• VC Impedance: 2
• Size: 12"
• Sensitivity: 86
• Frequency Response: 45-500Hz
• Power Handling (RMS/Peak): 250W / 500W

The ID12D2V4 Subwoofer is designed to deliver outstanding performance while maintaining reliability and affordability, making it a top choice for audio enthusiasts.
