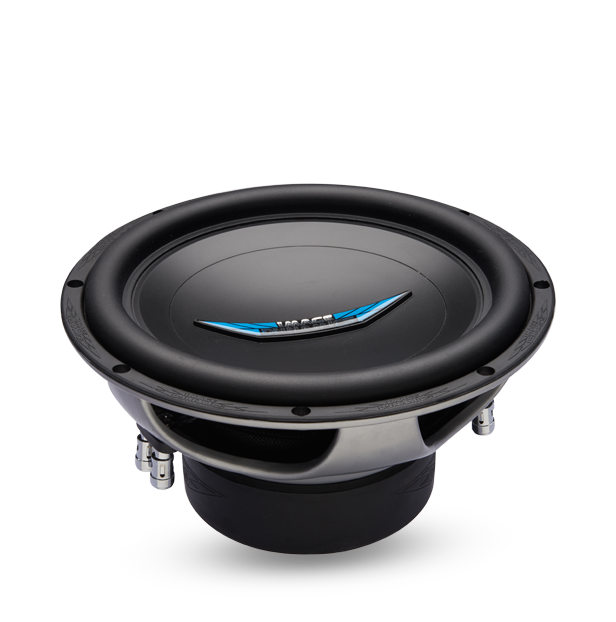

ID10 IMAGE DYNAMICS 10" SUBWOOFER

ID10D4V4 Subwoofer - Key Features

The ID Series Subwoofers deliver exceptional bass response in any enclosure, offering the perfect combination of quality and reliability for lower power applications—all at an affordable price. Engineered with the same level of precision and attention to detail that Image Dynamics is known for, this subwoofer is a great choice for audio enthusiasts.

Product Highlights:

• Available Models: Dual 4Ω or Dual 2Ω configurations
• Sizes: 8", 10", and 12"

Specifications:

• Nominal Impedance: Dual 4Ω/2Ω
• BL: 10.79
• Inputs: DVC (Dual Voice Coil)
• Material: Poly Cone
• Magnet Size: 127 oz.
• Dimensions:
  • Height: 5.12"
  • Width: 10.125"
  • Depth: 5.12"
  • Cutout Diameter: 9.125"
  • Mounting Depth: 5.12"
• Xmax (Maximum Excursion): 14 mm
• Sensitivity (SPL): 85 dB
• Frequency Response: 30-500Hz
• Voice Coil Size: 2"
• Power Handling: 250W RMS / 500W Peak

Additional Technical Details:

• Qts: 0.731
• Qes: 0.841
• Qms: 5.592
• Mms (Moving Mass): 128.20
• Cms (Compliance): 199
• Vas: 37.31
• SD (Surface Area): 363
• Fs (Resonance Frequency): 32 Hz
• Test Impedance: 3.8 (Tested Individually)
• VC Impedance: 4

This subwoofer is engineered to provide high-quality bass response while maintaining durability and performance. Whether you're upgrading your car audio system or building a custom setup, the ID10D4V4 Subwoofer from Image Dynamics is a reliable and cost-effective choice.
