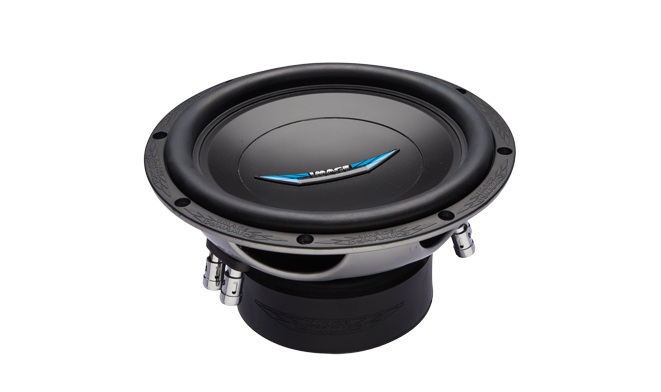

ID 8 IMAGE DYNAMICS 8" SUBWOOFER

Key Specifications of the ID 8 IMAGE DYNAMICS 8" SUBWOOFER

• Nominal Impedance: Dual 4Ω / Dual 2Ω
• BL: 10.05
• Inputs: DVC
• Voice Coil Size: 1.5"
• Material: Poly Cone
• Magnet Size: 90 oz.

Dimensions and Mounting Details

• Height: 4.45"
• Width: 8.4"
• Depth: 4.45"
• Dimensions (in Inches): 8.4"
• Cutout Diameter: 7.125"
• Mounting Depth: 4.45"

Performance and Technical Details

• Xmax: 12.5 mm
• Sensitivity (SPL): 84
• No: 0.148%
• Qts: 0.674
• Qes: 0.797
• Qms: 4.396
• Mms: 72.95
• Cms: 168
• Vas: 13.47
• SD: 240.6
• Fs: 31
• Test Impedance: 3.9 (Tested Individually)
• VC Impedance: 4

Power and Frequency Response

• Power Handling (RMS/Peak): 150W / 300W
• Frequency Response: 30-500Hz

This 8-inch subwoofer combines high-quality materials with superior performance, making it perfect for enhancing your audio experience.
