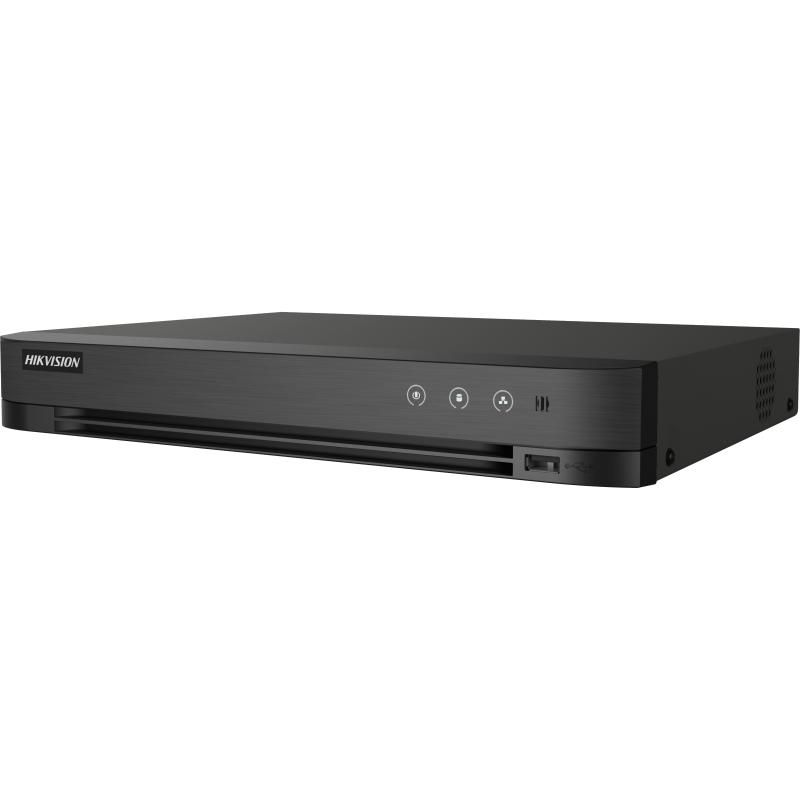

iDS-7216HQHI-M1/S 16CH DVR HIKVISION

• 16 channels and 1 HDD 1U AcuSense DVR
• Provides detailed information with face detection
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 24 network cameras can be connected.

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution4MP
• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Video And Audio

• IP Video Input8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI OutputYes
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback16-ch
• AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Decoding
• Recording Resolution

  Main stream:

  When 1080p lite mode not enabled:

  For 4 MP stream access:

  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

  Network

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection128
• Network Interface1×Gigabit

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  1 × USB 2.0；

  1 × USB 3.0

Alarm In/OutNo

General

• Power Supply12 VDC
• Consumption≤ 24 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity≤ 24 W
• Chassis1U(315mm)
• Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• ≤ 2 kg (4.4 lb)
