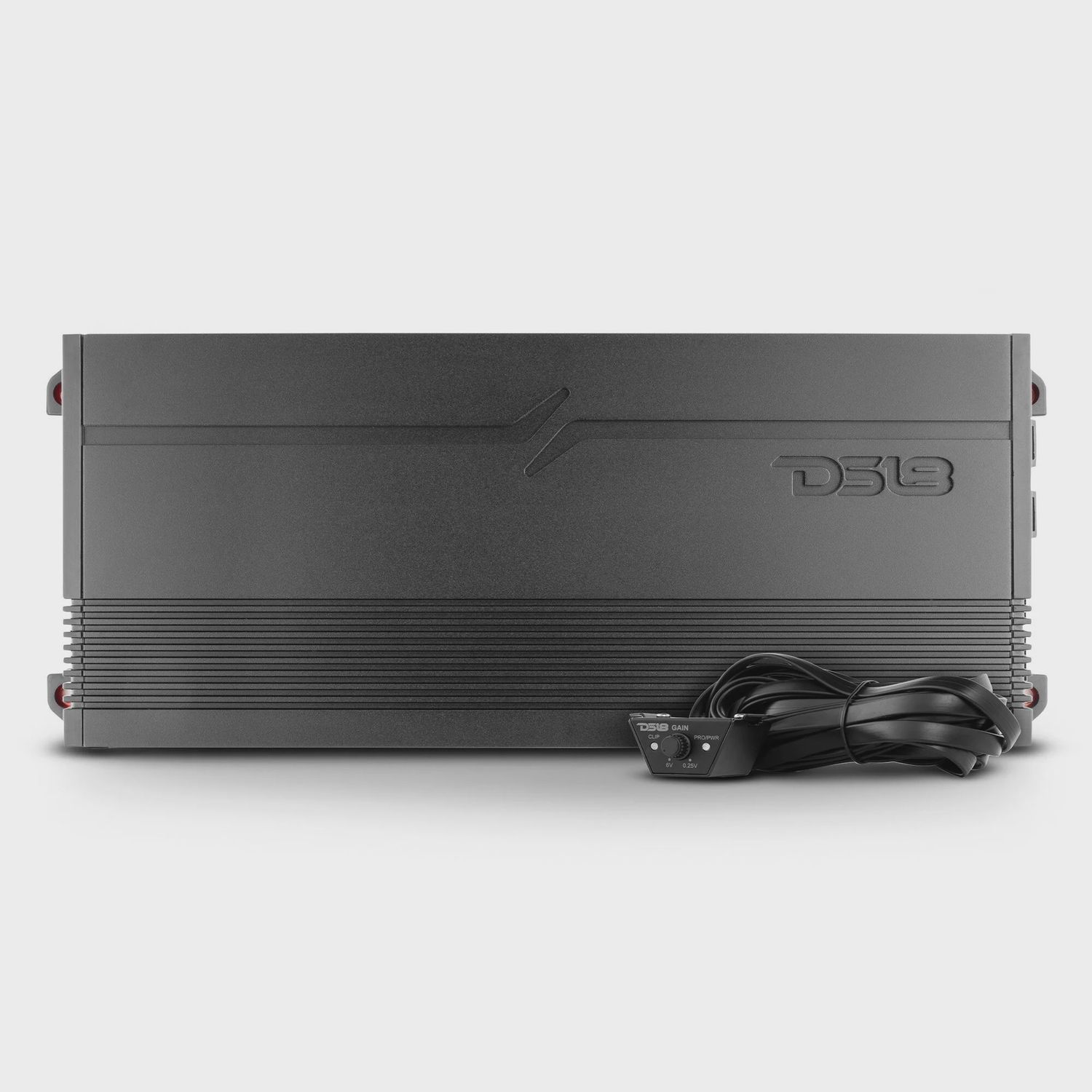

G3600.1 DS18 MONOBLOCK

DS18 Monoblock Subwoofer Amplifier Class D 3600W & Bass Knob w/ Clip Indicator

The Gen-X series has always been a DS18 staple with the public and has been featured in countless system builds over the years. Now, the GEN-X series has been redesigned from the ground up to meet the high standards of audio enthusiasts. It delivers great power, reliability, and efficiency, fulfilling every goal for the ultimate sound system.

The G3600.1D amplifier boasts impressive power ratings:

• 500 Watts RMS at 4 Ohms
• 900 Watts RMS at 2 Ohms
• 1200 Watts RMS at 1 Ohm
• 3600 Watts MAX

Designed to deliver pure and clean power on demand, this amplifier is both compact and powerful. Its small size ensures it won't take up much space while maintaining cool and loud performance. Perfect for powering subwoofers with efficiency and capability, this amplifier combines practicality with high-quality output.

Included in the Listing

• (1) DS18 Monoblock Amplifier DS-G3600.1D
• (1) Remote Gain Control Knob and Cable
• (1) 5 Pin Wire Harness
• (4) Phillip Head Screws
• (4) Washers
• (4) Spacers

Power Specifications

• Total Watts (Peak): 3600W
• RMS Power @ 4 Ohm: 500W
• RMS Power @ 2 Ohm: 900W
• RMS Power @ 1 Ohm: 1200W

Audio Specifications

• Frequency Response: 10 - 500Hz
• Signal to Noise Ratio: Greater than 93 dB
• Damping Factor: 45
• Input Impedance: 22 K
• Total Harmonic Distortion (THD): 0.0014%
• Low Level Input Range: 0.25 - 6V
• High Level Input: Yes
• Selectable X-over: Fixed LPF
• X-over Filter Range: 35 - 250 Hz
• Bass Boost Range: 0 - 12 dB
• Bass Boost Frequency: Fixed @ 45 Hz
• Infrasonic Filter: 10 - 50 Hz

Features

• Amplifier Class: Digital (D)
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1 Ch
• Minimum Impedance: 1 Ohm
• LED Indicators: Power / Protection / Clip
• Power Input Terminal Size: 4 GA
• Fuse Size: External 120A
• Remote Level Control: Yes
• Thermal Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Matte Black

Measurements

• Overall Length: 12" (305mm)
• Overall Width: 4.72" (120mm)
• Overall Height: 1.96" (50mm)
• Heatsink Length: 10.15" (258mm)
• Weight: 4.39 LBs (1.992 Kg)
