Product Information

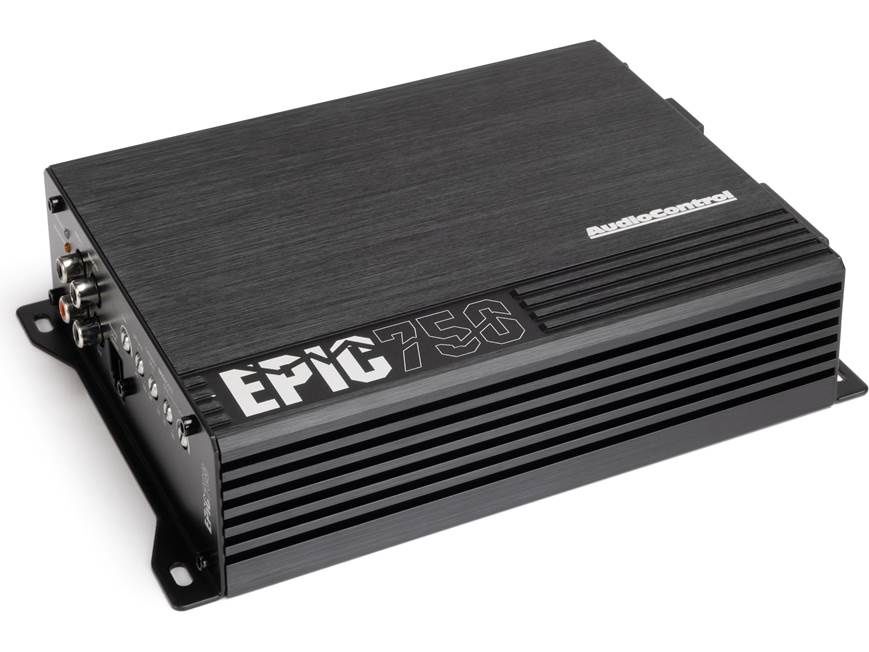

Mono Subwoofer Amplifier:

• Power Output:
  • 300 watts RMS x 1 at 4 ohms
  • 500 watts RMS x 1 at 2 ohms
  • 750 watts RMS x 1 at 1 ohm
• Bridgeable Capability: Combine with a second EPIC750 to produce 1500 watts RMS x 1 at 2 ohms.

Class D Amp Technology:

• Frequency Response: 10-190 Hz

Filters and Boost Features:

• Variable Low-Pass Filter: 40-180 Hz, 12 dB/octave
• Variable Subsonic Filter: Off-50 Hz, 12 dB/octave
• EPICBoost™ Variable Frequency Bass Boost: 0-12 dB at 30-80 Hz

Additional Information

Included Accessories:

• ACR-E Wired Remote Control
• Power Harness for Accessory Preamp:
  • Compatible with AudioControl line output converters and Epicenter bass enhancers.
  • Pre-installed 1A fuse for accessory power connection.

Connections and Requirements:

• Preamp inputs only.
• Wiring, fuse, and hardware not included with the amplifier:
  • Recommended: 4-gauge power and ground leads with an 80A fuse.

Dimensions:
8.62"W x 2.01"H x 6.1"D
