Specifications

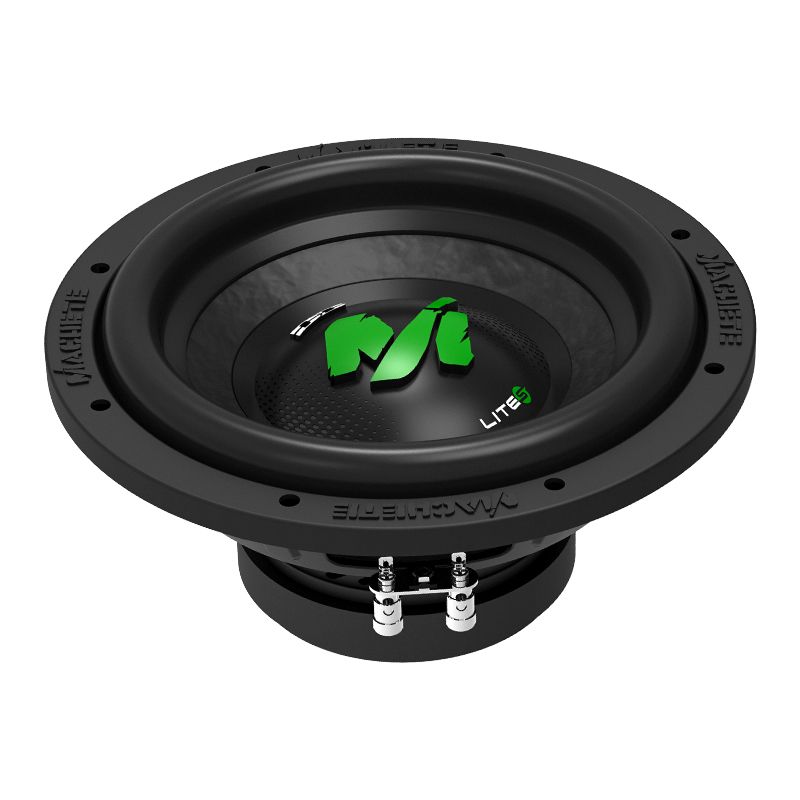

Model: ML-10S D2
Type: Subwoofer
Size: 10 inch
Voice Coil Size: 1.75 inch
Cone: Paper
Magnet: Ferrite
Voice Coil Wire: Copper
Surround: Foam

Power and Performance

• RMS Power: 300 W
• MAX Power: 600 W
• Impedance: 2+2 Ohm
• SPL (Sound Pressure Level): 85.90 dB
• Fs (Resonance Frequency): 39.70 Hz
• Qts (Total Q Factor): 0.40
• BL (Force Factor): 16.00

Build and Dimensions

• Frame: Steel
• Vas (Equivalent Air Volume): 16.20 L
• Xmeh (Maximum Excursion): 20.00 mm
• Xmax (Maximum Linear Excursion): 10.00 mm
• Mounting Depth: 4.58 inch (116.3 mm)
• Cut-Out Dimension: 9.13 inch (232.0 mm)
• Gross Weight: 9.26 lb (4.20 kg)

This subwoofer combines durable materials like a steel frame, ferrite magnet, and copper voice coil wire with a paper cone and foam surround for optimal performance. With its 10-inch size, dual 2-Ohm impedance, and 300 W RMS power, it offers solid power and clarity.
