Specifications at a Glance

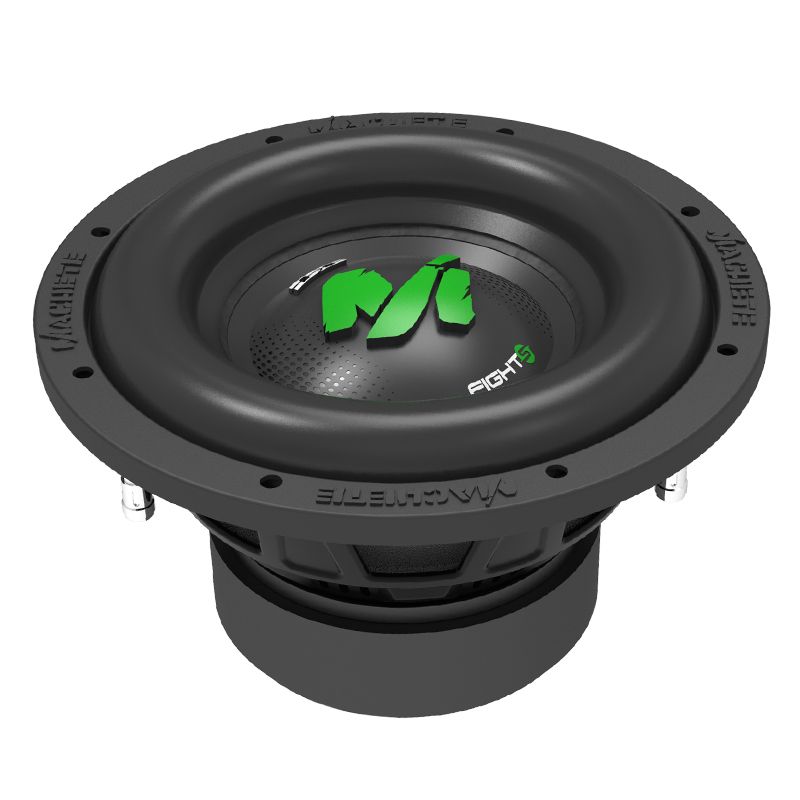

• Model: MF-10S D2
• Type: Subwoofer
• Size: 10 inch
• Voice Coil Size: 2.50 inch
• Cone Material: Paper
• Magnet: Ferrite
• Voice Coil Wire: Copper
• Surround Material: Foam

Power and Performance

• RMS Power: 800 W
• MAX Power: 1600 W
• Impedance: 2+2 Ohm
• SPL (Sound Pressure Level): 84.00 dB
• Fs (Resonant Frequency): 36.00 Hz
• Qts (Total Q Factor): 0.45
• BL (Force Factor): 18.00

Physical Details

• Frame: Steel
• Vas (Equivalent Air Volume): 20.50 L
• Xmeh (Maximum Mechanical Excursion): 28.00 mm
• Xmax (Maximum Linear Excursion): 14.00 mm
• Mounting Depth: 5.63 inch (143.0 mm)
• Cut-out Dimension: 8.98 inch (228.0 mm)

Weight

• Gross Weight: 16.42 lb (7.45 kg)

This subwoofer combines high-quality materials like a steel frame, ferrite magnet, and copper voice coil wire, ensuring durability and performance. With its powerful RMS and MAX power ratings, it delivers exceptional audio clarity and depth, making it a reliable choice for any sound system.
