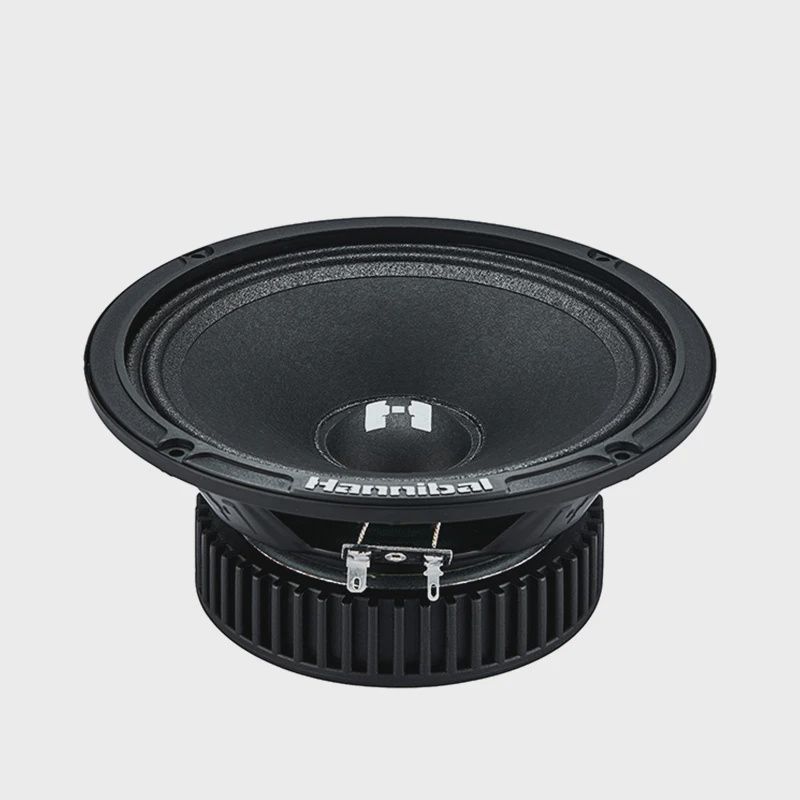

DB HANNIBAL HM-6S (PAIR) MID RANGE 6.5"

Specifications

Model: HM-6S
Type: Midrange
Size: 6.5"

Frequency Response: 100-11000 Hz
Package Quantity: Pair
Voice Coil Size: 1"

Cone Material: Paper
Magnet Type: Ferrite
Voice Coil Wire: CCAW
Surround Material: Cloth

Power Ratings:

• RMS Power: 100 W
• MAX Power: 200 W

Frame Material: Stamped steel
Impedance: 4 Ohm
SPL (Sound Pressure Level): 92.5 dB

Technical Specifications:

• Fs (Resonant Frequency): 98 Hz
• Qts (Total Q Factor): 0.71
• BL (Magnetic Force): 4.35
• Vas (Equivalent Air Volume): 10.2 L

Mounting Details:

• Mounting Depth: 2.74" (69.7 mm)
• Cut-out Dimension: 5.85" (148.5 mm)
