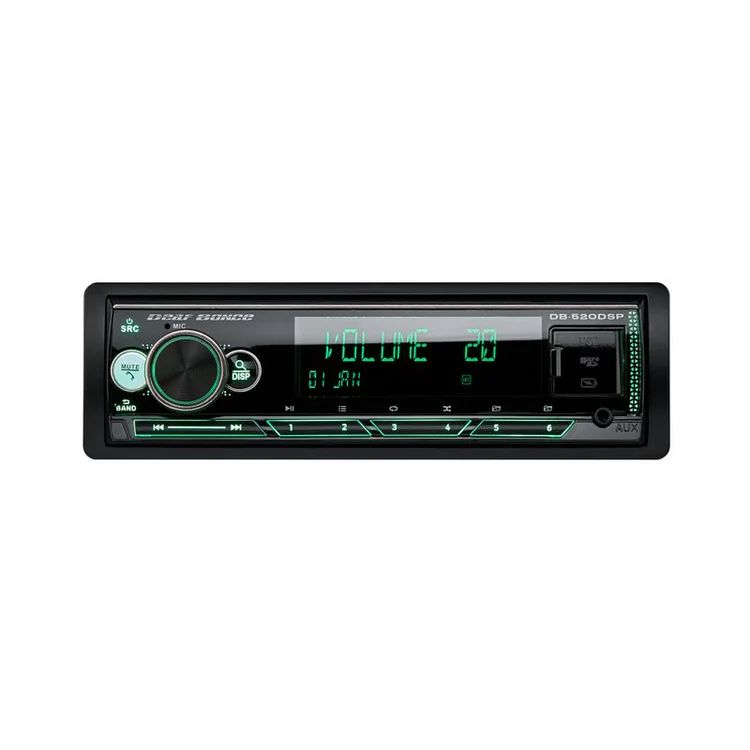

The Deaf Bonce DB-520DSP delivers 4x25 W RMS at 4 Ohms for robust and clear sound. Its advanced DSP technology ensures precise audio tuning and customization. With 8 RCA outputs, USB ports, and an AUX input, it offers versatile connectivity. The compact, lightweight design makes it easy to install in various setups.



Features:



High Power Output: Delivers 4x25 W RMS at 4 Ohms, providing robust and clear sound.

Advanced DSP Technology: Offers precise audio tuning and customization for optimal sound quality.

Versatile Connectivity: Includes 8 RCA outputs, USB ports, and an AUX input for seamless integration with various audio systems.

Compact Design: Lightweight and easy to install, making it suitable for different setups.





Specifications:



Specification Details

Product Name Deaf Bonce DB‑520DSP

UPC 4650185710278

Built-in Amplifier Power 4 × 25 W RMS @ 4 Ω

Amplifier Class Class AB

Total RCA Outputs 8 RCA outputs (6 full-range, 2 subwoofer)

Frequency Response (Full-Range) 20 Hz – 20 kHz

Frequency Response (Subwoofer) 20 Hz – 800 Hz

Signal-to-Noise Ratio ≥ 80 dB

Bluetooth Profile A2DP

Crossover Filters HPF/LPF on full and sub channels, 6–24 dB/oct

Time Alignment 0–642 cm / up to 18 ms (0.1 ms steps)

Inputs USB Type-A + 5 V/1 A charging, 3.5 mm AUX

Radio Tuner Type AM/FM with RDS; 18 FM & 12 AM presets

Steering-Wheel Control (SWC) Yes

Hands-Free Calling Yes

Display & Lighting VA LCD; ARGB backlight (7 colors, 2 zones)

Operating Voltage 10–17 V

Terminals Input: 16 AWG; Output: 20 AWG

Auto Turn-On ACC

Integrated Fuse 15 A

Unit Dimensions 188 × 58 × 138 mm (7.4″ × 2.28″ × 5.43″)
