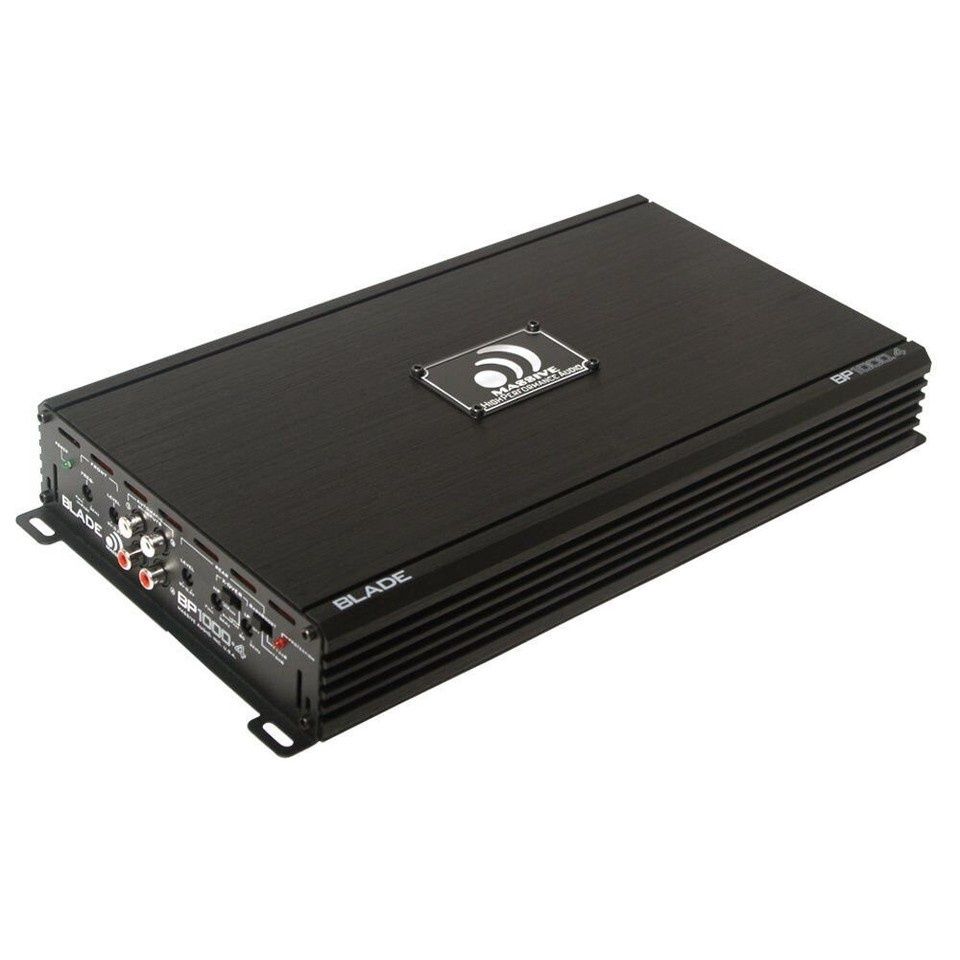

BP1000.4 V2 MASSIVE 4 CHANNEL

Features

• Built-In OEM Line Converter
• 2 Ohm Stable Design
• Low Pass Frequency / OFF Crossovers
• Up to 9 Volt Input via RCA or High Level Speaker Leads
• Bass Boost 0dB ~ 12dB @ 45Hz
• Built-in Noise Reduction Circuitry
• Full MOSFET with High Grade Switching Devices
• Built-In, DC Offset, Auto Sensing Turn On Function (Hi-Level Inputs)
• 12V Remote Output for External Devices (Hi-Level Inputs)
• Variable Low Pass Crossover Frequencies from 50Hz ~ 750Hz
• Ground Loop Isolator
• Next Generation Advanced 5 Way Protection Circuitry
• High Output Power Supply & Dual Output Voltage
• Mil Spec PCB with SMD parts
• World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)

Specifications

• Peak Output Power @ 14.4V: 250W x 4
• 1 Ohm RMS: N/A
• 2 Ohm RMS: 160W x 4
• 4 Ohm RMS: 80W x 4
• 4 Ohm Bridged: 320W x 2
• Input Level: 0.2~9.0v
• Frequency Response: 10Hz~35KHz
• THD at 4 Ohm Load 30% Rated Power: <0.05%
• Signal-to-Noise Ratio (S/N Ratio): >90dB
• Bass Boost: 0~12dB (45Hz)
• Minimum Load: 2 Ohm Stereo
• Gain Remote: n/a
• Dimensions: 2"H x 7.1"W x 12.6"L
