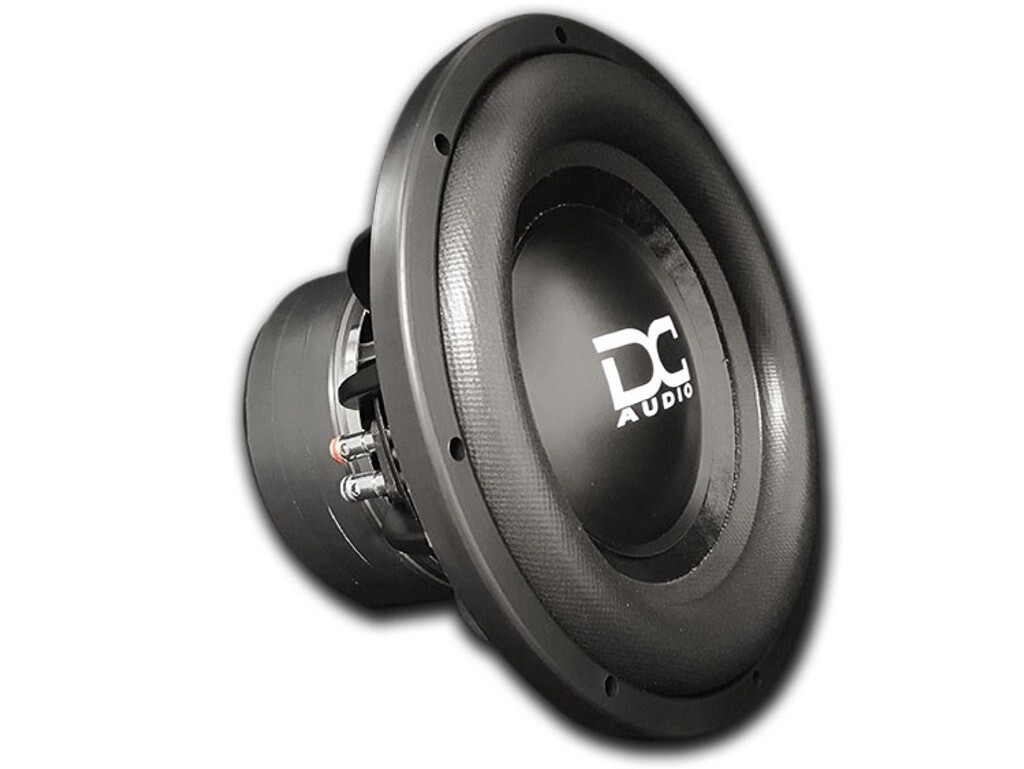

XL 15" D2 DC AUDIO

Note- This is the last unit available which is on display. Has never been used or installed.

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Triple 8” OD semi cup progressive roll spider

• Extra heavy duty interweaved tinsel lead wire sewn to spider

• Cast aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• Chrome spring loaded push terminals

• 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former 8 Layer Flat Wound

• Rubber magnet cover



T/S Parameters

Sub Size 15"

Mounting Depth 8.0"

Mounting Hole Diameter 14.0"

Outside Driver Diameter 15.7"

Weight 33.5lbs

Magnet Material Ferrite

VC Diameter 3.0" 8 Layer Flat Wound

Displacement .21³ ft

Power Handling RMS/Peak 1500/3000

Impedance (Ohm) D1/D2/D4

Sd 823cm²

Vas 80.16L

Cms 0.085 mm/n

Mms 318.5 g

Fs 30.6 Hz

BL 19.18 N/A

Re 3.82 Ohm

Le 3.78mH

Qms 10.2

Qes 0.644

Qts 0.60

Xmax 23.5mm

Ref SPL @ 1 watt 87.4

Suggested Sealed 2.00³ ft

Suggested Ported 3.0³ ft
