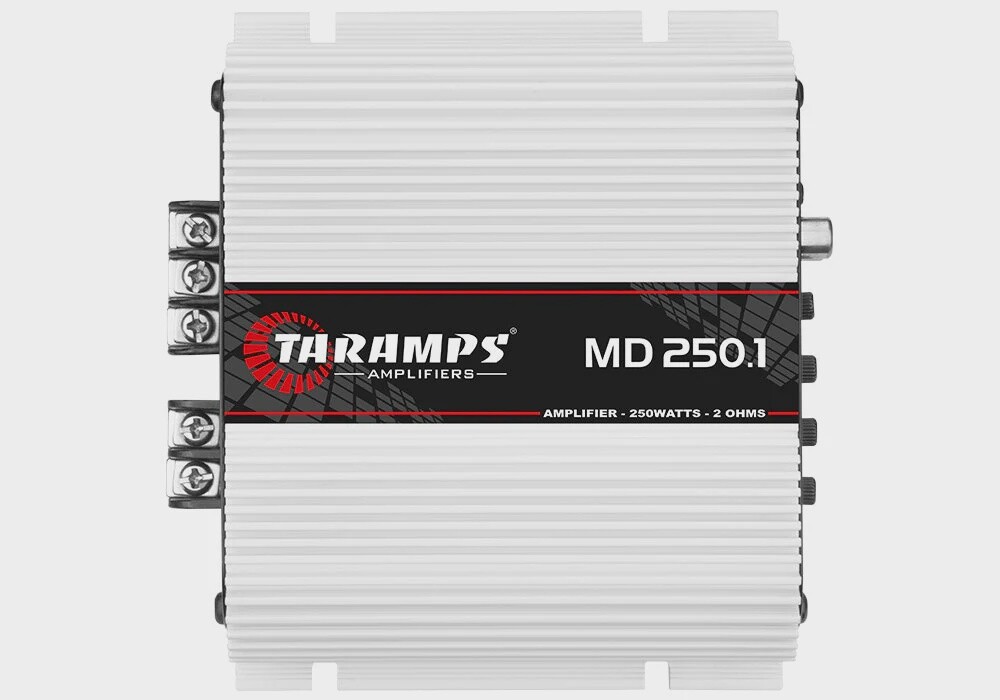

TARAMPS MD250.1 250 WATTS RMS CAR AUDIO AMPLIFIER
$695.00
OHMRAGE
Please choose
Save this product for later
TARAMPS MD250.1 250 WATTS RMS CAR AUDIO AMPLIFIER
Product Details
Brand: TARAMPS
Description
The Taramps MD 250.1 in the 4, 2-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the entire frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 250-Watts RMS. Welcome to Taramps audio world.
TECHNICAL INFORMATION
| OPERATION CLASS | Class D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 13.8 VDC - 2 OHMS: 250W RMS @ 13.8 VDC - 4 OHMS: 160W RMS |
| INPUT SENSITIVITY | 220mV |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| BASS BOOST | 0 ~ 10dB (50Hz) |
| INPUT IMPEDANCE | 10K ohms |
| OUTPUT IMPEDANCE | 2 ohms |
| PROTECTION SYSTEM | Output short-circuit / thermal protection |
| MIN. SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 0.5 A |
| MAXIMUM MUSIC CONSUMPTION | 12.5 A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 25 A |
| DIMENSIONS (WXHXD) | 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) |
| WEIGHT | 1.43lb (0,65kg) |
| EAN | 7898556845090 |
TECHNICAL INFORMATION
| OPERATION CLASS | Class D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 13.8 VDC - 2 OHMS: 250W RMS @ 13.8 VDC - 4 OHMS: 160W RMS |
| INPUT SENSITIVITY | 220mV |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| BASS BOOST | 0 ~ 10dB (50Hz) |
| INPUT IMPEDANCE | 10K ohms |
| OUTPUT IMPEDANCE | 4 ohms |
| PROTECTION SYSTEM | Short-circuit and thermal protection |
| MIN. SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | 0.55 A |
| MAXIMUM MUSIC CONSUMPTION | 12 A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 24 A |
| DIMENSIONS (WXHXD) | 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) |
| WEIGHT | 1.43lb (0,65kg) |
| EAN | 7898556845106 |
