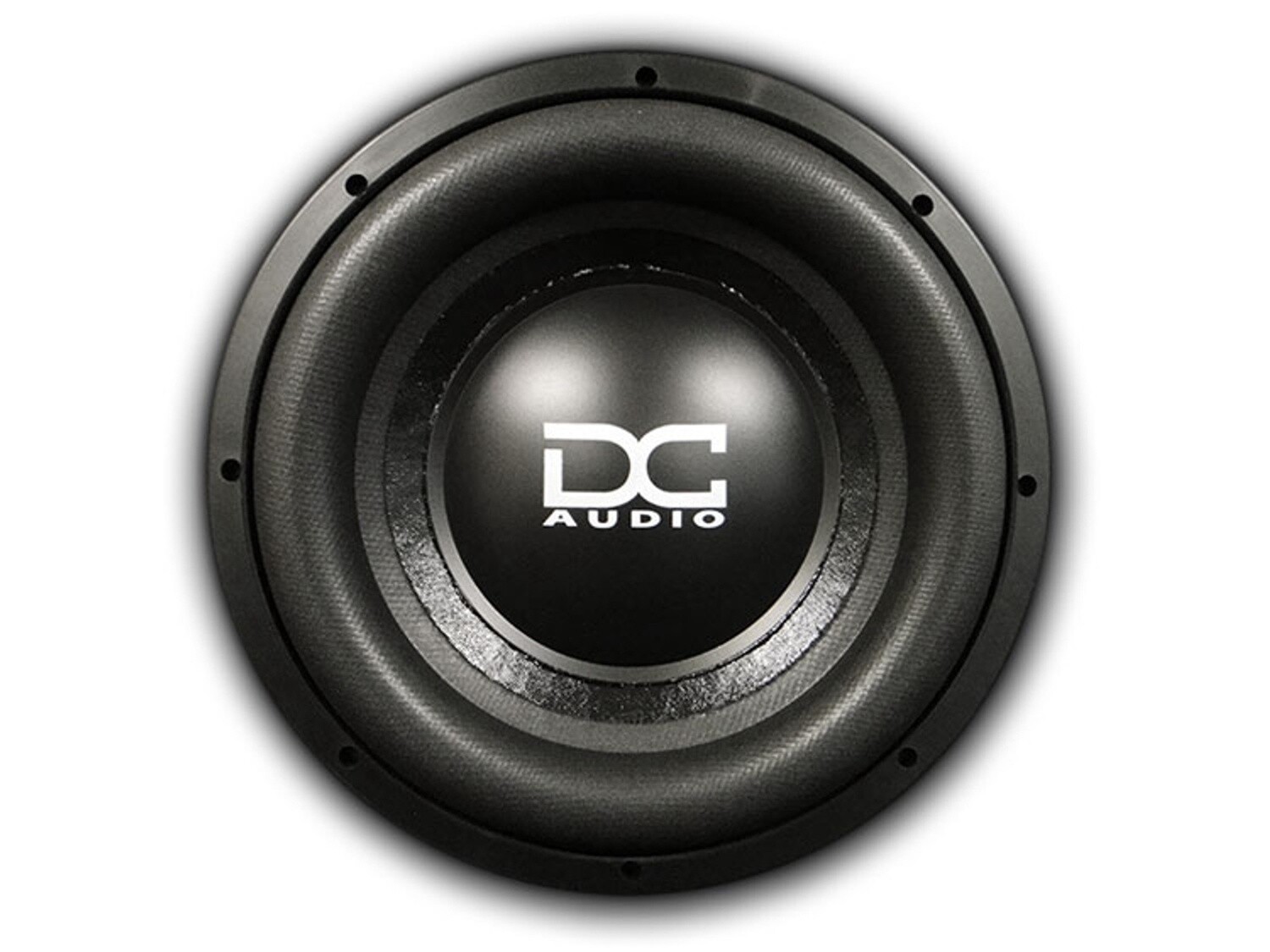

LEVEL 3 15" DC AUDIO D2 OHM

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Dual 8” OD semi cup progressive roll spider

• Extra heavy duty interweaved tinsel lead wire sewn to spider

• Cast aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• Chrome spring loaded push terminals

• 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former

• Rubber magnet cover



T/S Parameters

Sub Size 15"

Mounting Depth 8.0"

Mounting Hole Diameter 14.0"

Outside Driver Diameter 15.7"

Weight 21.5lbs

Magnet Material Ferrite

VC Diameter 3.0"

Displacement .18³ ft

Power Handling RMS/Peak 1000/2000

Impedance (Ohm) D2

Sd 823cm²

Vas 84.88L

Cms 0.09 mm/n

Mms 295 g

Fs 30.9 Hz

BL 17.2 N/A

Re 3.6 Ohm

Le 3.5mH

Qms 8.18

Qes 0.706

Qts 0.65

Xmax 23mm

Ref SPL @ 1 watt 87.3

Suggested Sealed 2.00³ ft

Suggested Ported 3.0³ ft
