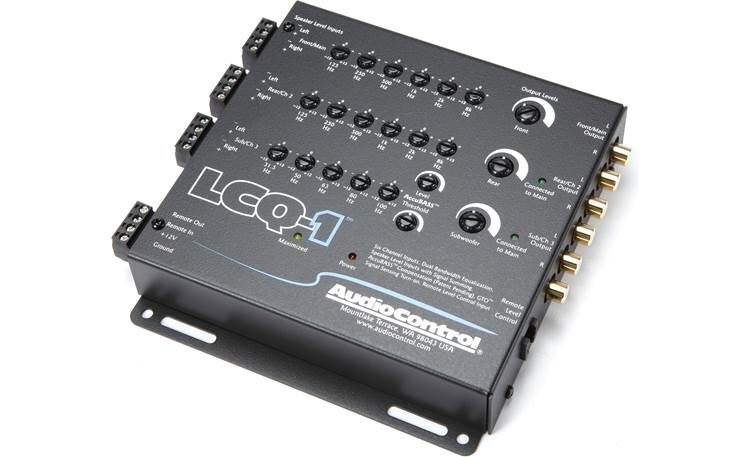

LCQ-1 AUDIOCONTROL

Product highlights:

• 6-channel line output converter plus 11-band equalization and bass restoration
• 6 speaker-level inputs (each can handle up to 400 watts RMS)
• internal channel summing
• 11-band graphic equalizer
  • subwoofer channels: 5 bands (center frequencies: 31.5, 50, 63, 80, 100 Hz)
  • front and rear channels: 6 bands (center frequencies: 125, 250, 500, 1000, 2000, 8000 Hz)
• AccuBASS™ bass restoration circuitry
• 6 preamp outputs (up to 8.5 volts RMS)
• level matching controls with Maximized Indicator LED

Other Features:

• optional wired remote subwoofer level controller available (item 161ACR2)
• AutoMode™ turns 4-channel input to 6-channel output
• GTO™ signal-sensing turn on
• 12-volt turn-on lead output
• recommended fuse rating: 2 amps
• 7-15/16"W x 1-5/16"H x 6-15/16"D
