LC2i AUDIOCONTROL

Product Overview

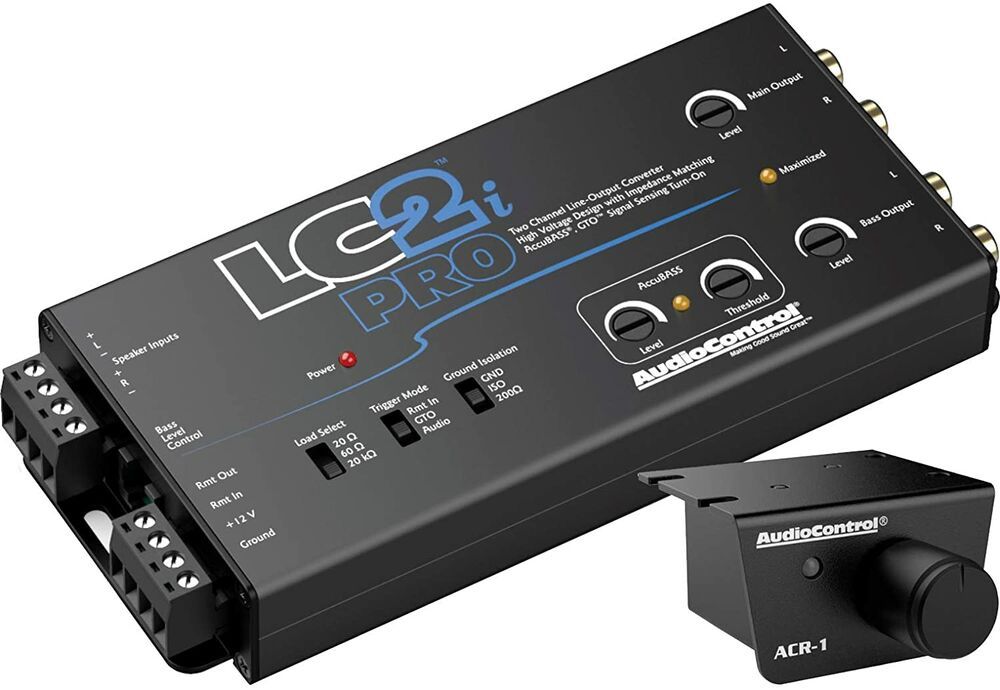

The AudioControl LC2i PRO provides an answer to all the critical OEM interface issues technicians encounter from a small, elegant chassis. The LC2i PRO builds upon the success of the LC2i by adding new LMC technology with load generating devices built-in, making it compatible with virtually every vehicle on the road. Also, the AccuBASS® threshold control, GTO, and Ground Select switches are on top of the unit, and an AccuBASS calibration LED has been added to the top panel as well, making the installation process far more efficient. The LC2i PRO comes complete with the ACR1 remote bass level control, giving users on-demand access to bass levels as they enjoy their music.

General Features:

• Adjustable 2-channel line out converter
• Separate level adjustment for each channel
• Two channels of active speaker level inputs (up to 40V input handling)
• AccuBASS® processing for correction of bass roll-off
• ACR-1 dash remote inluded
• Load Selection Switch
• Ground Isolation Switch
• 400 watt maximum input
• AccuBASS circuitry restores bass signal
• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110 dB
• Frequency Response: 20 Hz – 50 kHz ±1 dB
• Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
