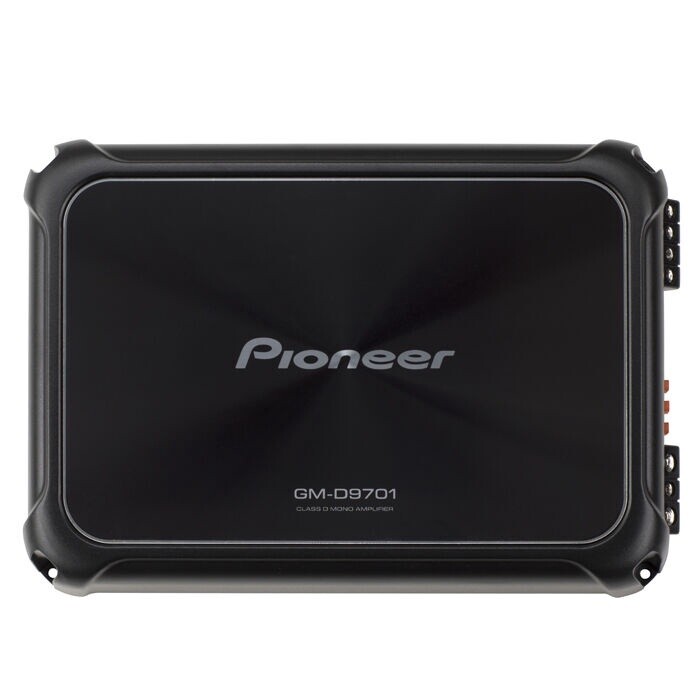

GM-D9701

Product Details:

• GM Digital Series Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 500 watts x 1 channel
• 2 ohms: 800 watts x 1 channel
• 1 ohm: 1200 watts x 1 channel
• Total RMS power output: 1200 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Speaker-level (high-level) inputs
• 1 pair of pre-amp outputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• CTA-2006 compliant
• Input sensitivity:
• Low level: 16mV - 0.8 volts
• High level: 200mV - 6.5 volts
• Frequency Response: 40 - 500 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 75 dB
• Variable low-pass filter: 40 - 240 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 11-7/8" L x 8-1/2" W x 2-3/8" H
