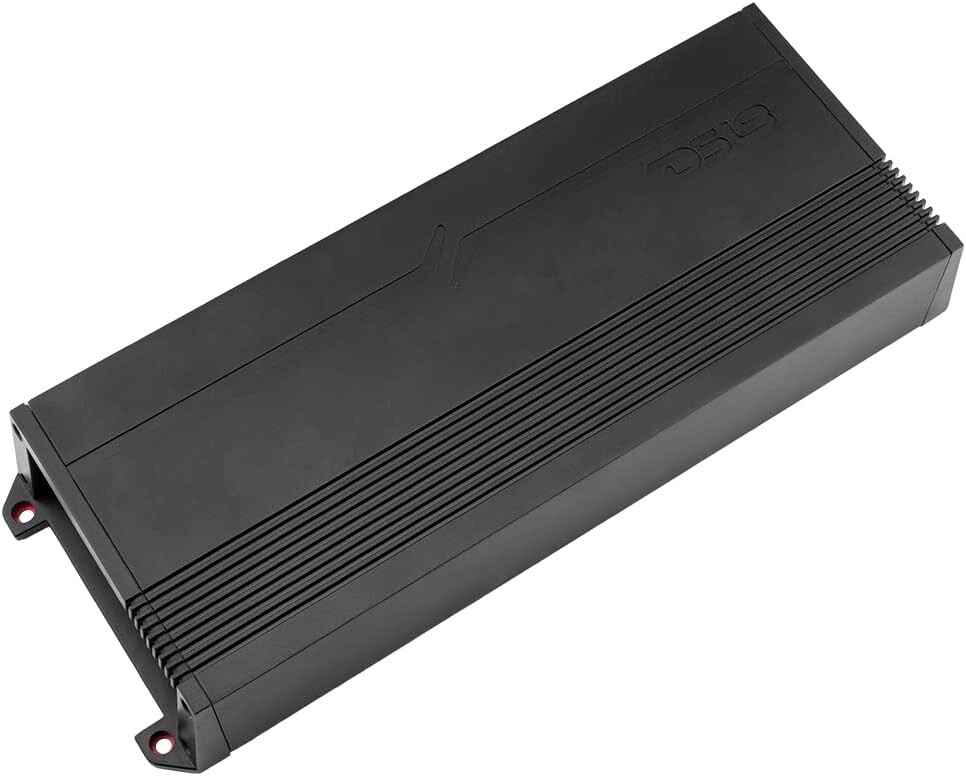

G4000.5D 5 CH AMPLIFIER DS18

Highlights:

• Small and powerful design so you can power your subs with great efficiency and power without taking up much space
• Integrated low pass and high pass filter to help you get the perfect response you are looking for.
• High quality terminals that look great and will transfer your power and signal with no loss.
• Included remote knob and cable for fast and easy line attenuation.
• High level inputs for seamless factory integration.

Power:

• Total Watts (Peak): 4000W
• RMS Power @ 4 ohm: 4 x 130W / SUB: 300W
• RMS Power @ 2 ohm: 4 x 220W / SUB: 600W
• RMS Power @ 1 ohm: SUB: 900W
• RMS Power @ 4 ohm Bridge: 2 x 420W

Audio:

• Frequency Response: 20Hz-20Khz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 0.83
• Damping Factor: 78
• Input Impedance: 22K
• Channel Separation: 55dB
• Total Harmonic Distortion (THD): 0.0001
• Low Level Input Range: 0.25-6V
• Selectable X-Over: HPF/LPF
• X-Over Filter Range: HPF:10-250Hz / LPF:50-250Hz
• Bass Boost Range: 0-12dB
• Bass Boost Frequency: Fixed @ 45Hz
• Infrasonic Filter: 10-50Hz

Features:

• Amplifier Class: Digital (D)
• Amplifier Type: Full Range
• Number of Channels: 5CH
• Minimum Impedance: 2ohm St / 4ohm Bridge / 1ohm Sub
• Led Indicator: Power / Protection / Clip
• Power Input Terminal Size: 4ga
• Fuse Size: 160A
• Remote Level Control: Yes
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Matte black

Measurements:

• Overall Length: 12.8" / 325mm
• Overall Wide: 4.72" / 120mm
• Overall Height: 1.96" / 50mm
• Heat-sink Length: 10.9" / 278mm
• Gross Single Unit Weight: 2.2KG
