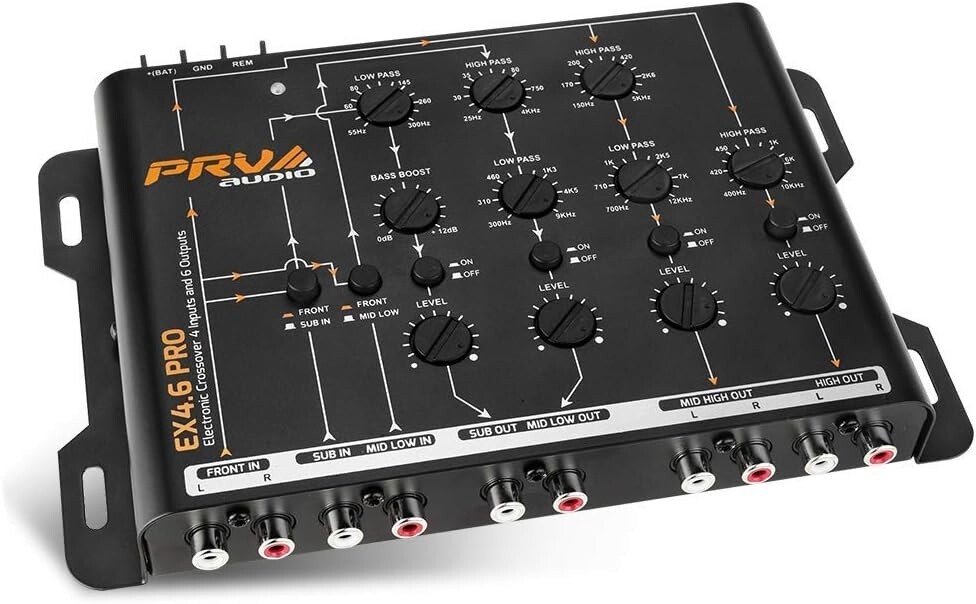

EX4.6PRO 4 WAY PRV CROSSOVER
$800.00
Save this product for later
EX4.6PRO 4 WAY PRV CROSSOVER
Product Details
UPC: 602938022620
Brand: PRV
Description
Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!
HIGHLIGHTS
- 2/3/4 RCA Input Signal Options
- 9 Volts RMS maximum output
- Bass Boost 0 to 12dB set at 45Hz
- Quick On/Off button for each channel
- Crossover slope rate: Butterworth 12 db/Octave
Input and output Functions:
– 2/3/4 RCA inputs for 3 Channels – 1 Stereo and 2 Mono
– 6 RCA outputs for 4 Channels – 2 Stereo and 2 Mono
GENERAL SPECIFICATIONS
| High Out Channel | High Pass – 400Hz – 10KHz (12dB/8a) |
| Mid High Out Channel | High Pass – 150Hz – 5KHz (12dB/8a) |
| Mid Low Out Channel | High Pass – 25Hz – 3KHz (12dB/8a) |
| Sub Out Channel | Low Pass – 50Hz – 250KHz (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz) |
| Maximum Output Voltage | 9V RMS |
| Maximum Input Voltage | 4V RMS |
| Signal to Noise | >90dB |
| Input Impedance | 10K Ohms |
| Harmonic Distortion | < 0.02% THD |
| Channel Separation | > 80dB |
| Frequency Response | 20Hz-200KHz |
| Supply Voltage | 10V – 16V DC |
| Current Consumption | 200mA |
| Impedance Output | 470 Ohms |
| Dimensions (H x W x L) | 1.30″ x 9″ x 6.30″ |
| Weight | 1.45 Lbs |
