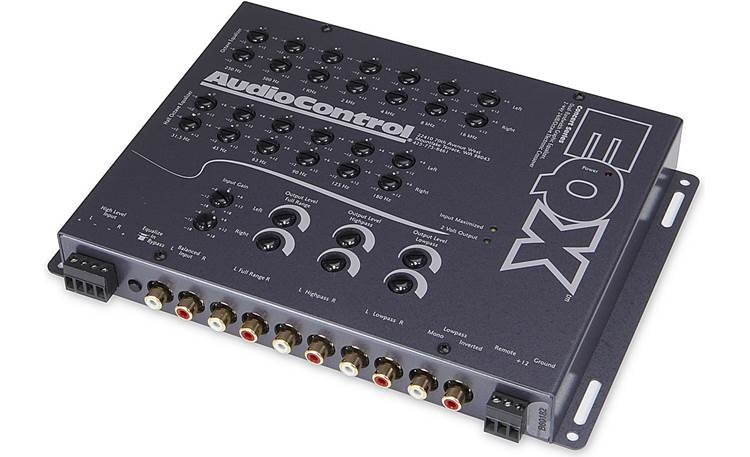

EQX AUDIOCONTROL

Product highlights:

• dual 13-band equalizers with level matching controls
• gray steel chassis with gold-plated RCA jacks
• Linkwitz-Riley 2-way crossover (90 Hz at 24 dB/octave)
• top-mounted controls for easy adjustment
• preamp- and speaker-level inputs
• 6-channel outputs: full range, high-pass, and low-pass
• balanced inputs eliminate noise
• 33 Hz subsonic filter eliminates extreme low bass (rolloff point can be adjusted with optional module)
• EQ points: 31.5, 45, 63, 90, 125, 180, 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
• frequency response: 10 to 20,000 Hz
• signal-to-noise ratio: 110 dB at full output
• maximum output level: 9.5 volts
• fuse rating: 2 amps
• size: 6-15/16"H x 8-15/16"W x 1-1/4"D
• weight: 3 pounds
