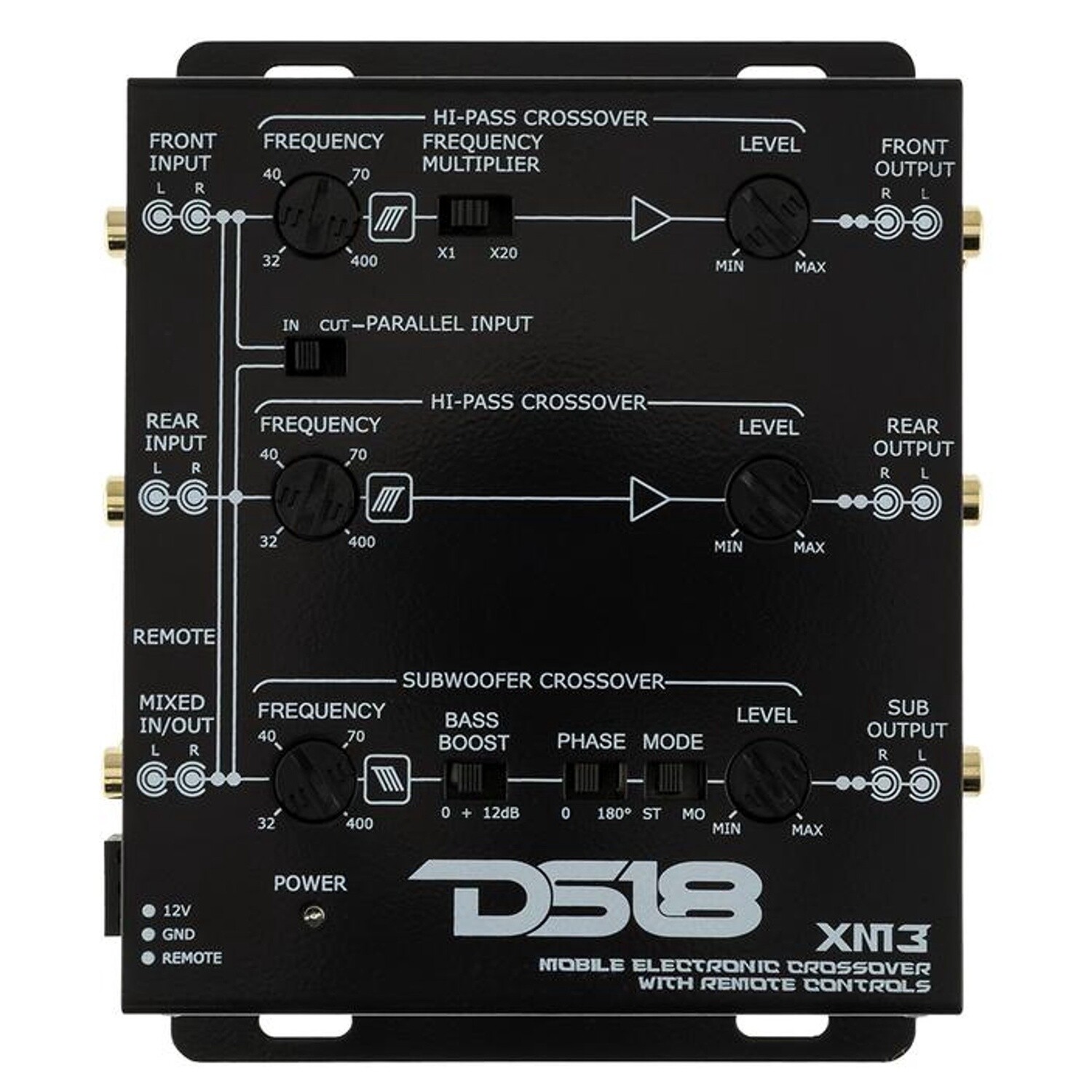

DS18 XM3 CROSSOVER

DESCRIPTION

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic.

3 Way Active Crossover with x20 Frequency Multiplier Switch
Remote Sub Level Control
0-180 Degree Subwoofer Phase Switch
Detected Frequency Selection Control
Gold RCA Input and Output Connectors
Bass Boost Power
Ground and Remote Connector
PWM Power Supply
LED Power Indicator
Signal To Noise Ratio >102dB
Total Harmonic Distortion (1KHz, 1VRMS) 0.01%
Crossover Slopes: 12dB/Octave Butterworth
Crossover Frequencies: Front High Pass, Rear High Pass, and Subwoofer: 32Hz to 400Hz
Remote Sub Level: 18dB Boost
Low Level Input Voltage: 4VRMS
Maximum Output (10 K_ Load): 9vrms
Supply Voltage: 9-15 VDC
