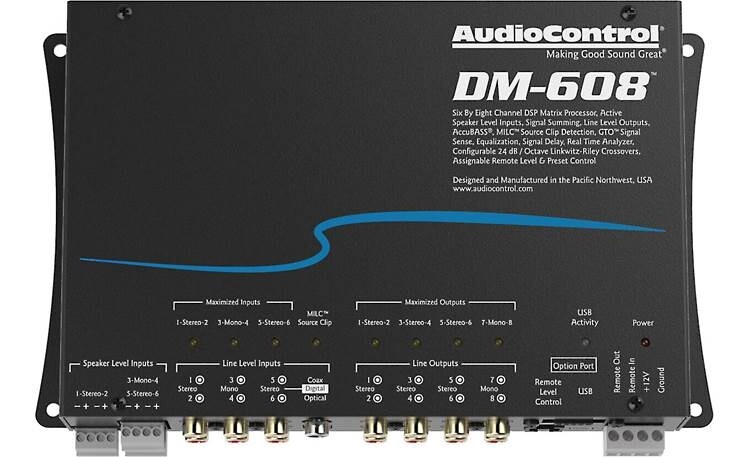

DM-608 AUDIOCONTROL PROCESSOR

Product highlights:

• digital signal processor
• 6 input channels, 8 outputs
• all controls and adjustments accessible on your laptop (PC or Mac) via USB connection (AudioControl's Smart-User DSP software included)
  • USB cable included
  • control via Android and iOS devices requires an AudioControl AC-BT24 Bluetooth adapter
• variable high-pass, low-pass, and bandpass filters (20-20,000 Hz at 12 or 24 dB/octave)
• 30-band graphic EQ, parametric filters, phase correction
• AccuBASS circuitry for improved bass response
• time delay/alignment for inputs and outputs
• RTA (real-time analyzers) for inputs and outputs

Other Features:

• optional wired remote (#161ACR3) controls volume, selects sources, and recalls up to four presets
• MILC™ (Maximum Input Level Control) LED optimization and clip indicators
• GTO™ signal-sensing turn-on
• 6 speaker-level inputs (summable)
• 6 preamp inputs, 8 preamp outputs
• coax and optical digital inputs
• recommended fuse rating: 3 amps
• dimensions: 9-3/8"W x 1-5/8"H x 6-3/16"D
