DC AUDIO 3.5K MONOBLOCK
$8 000.00
Sold out
Sold out
Save this product for later
DC AUDIO 3.5K MONOBLOCK
Product Details
Brand: DC AUDIO

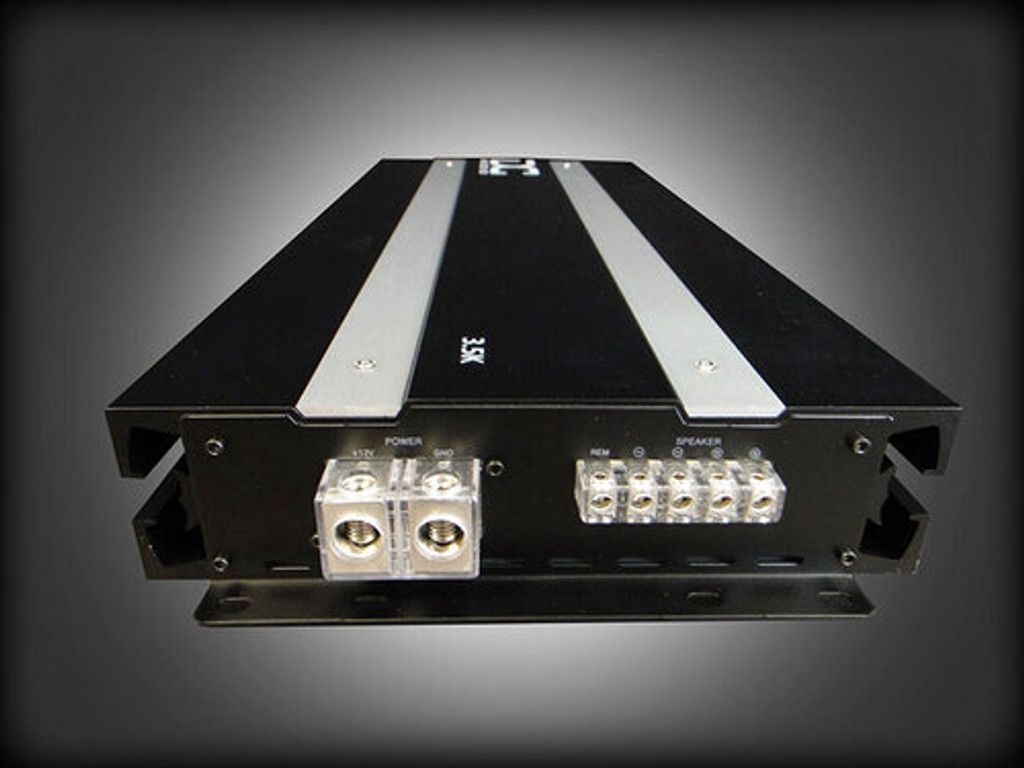

The 3.5k competition series amplifier is rated as a 3500 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when linked for up to 11,000 watts from a pair. It comes with a bass knob and a clipping indicator.
Output Power (RMS):
- 750x1 @ 4 ohms 14.4 volts
- 1800x1 @ 2 ohms 14.4 volts
- 3500x1 @ 1 ohms 14.4 volts
- 7000x1 @ 2 ohm 14.4 volts LINKED
- 4000x1 @ 1 ohm 16.0 volts
- 8000x1 @ 2 ohm 16.0 volts LINKED
- 5100x1 @ 1 ohm 18.0 volts
- 11000x1 @ 2 ohm 18.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable
- Wired remote control
- Clipping indicator
- 8awg Speaker Terminals
- 1/0awg Power and Ground Inputs
Full Specs:
| DC Amp Model: | 3.5k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 350 amp |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 21.26"/540mm |
| Heatsink Width | 9.38"/238mm |
| Heatsink Height | 2.35"/59.6mm |
