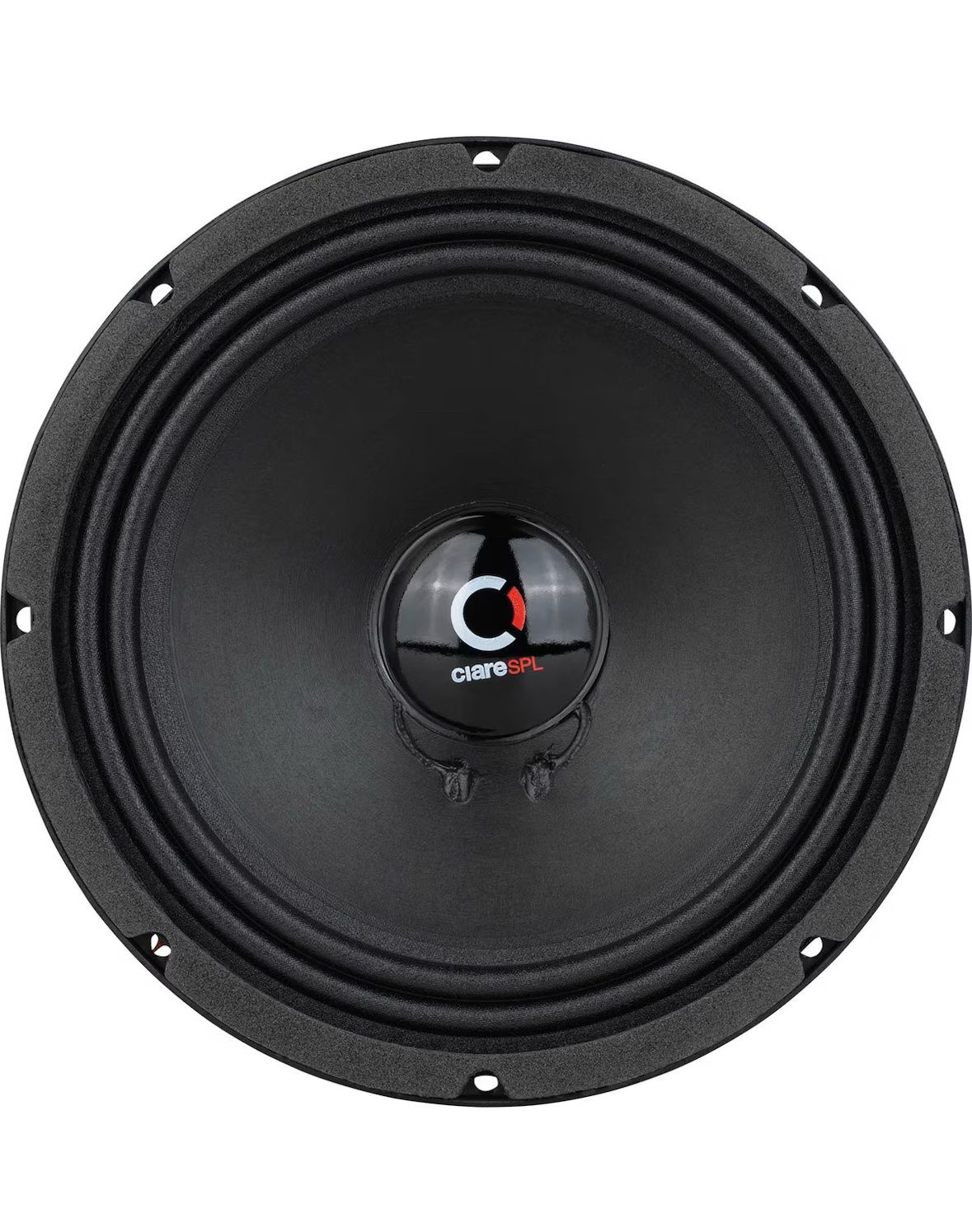

CME201 8" CIARE

SPECIFICATIONS FREQUENCY RESPONSE CURVE ⁶
Nominal Diameter 8''- 200 mm
Rated Impedance 4 Ohm
Nominal Power Handling ¹ 220 W
Program Power ² 450 W
Sensitivity ³ 95,5 dB
Frequency Range ⁴ 70-5000 Hz
Minimum Impedance
Basket Material Steel
Magnet Material Ferrite
Cone Material Doped cellulose fiber
Cone Shape Exponential
Surround Cotton fabric FREE AIR IMPEDANCE CURVE ⁷
Voice Coil Diameter 2 in - 50 mm
Voice Coil Winding Material Copper
Voice Coil Length 12,5 mm - 0,49 in
Voice Coil Former Material Glass fiber
Connection type
Ferrofluid No
Magnetic Gap Height 8 mm - 0,31 in
Max. Peak to Peak Excursion
Efficiency Bandwidth Product EBP 136
Recommended Loading Vented Box
Volume / Tuning frequency 15 Lt (dm³) - 0,53 cuft / 55 Hz
