Description

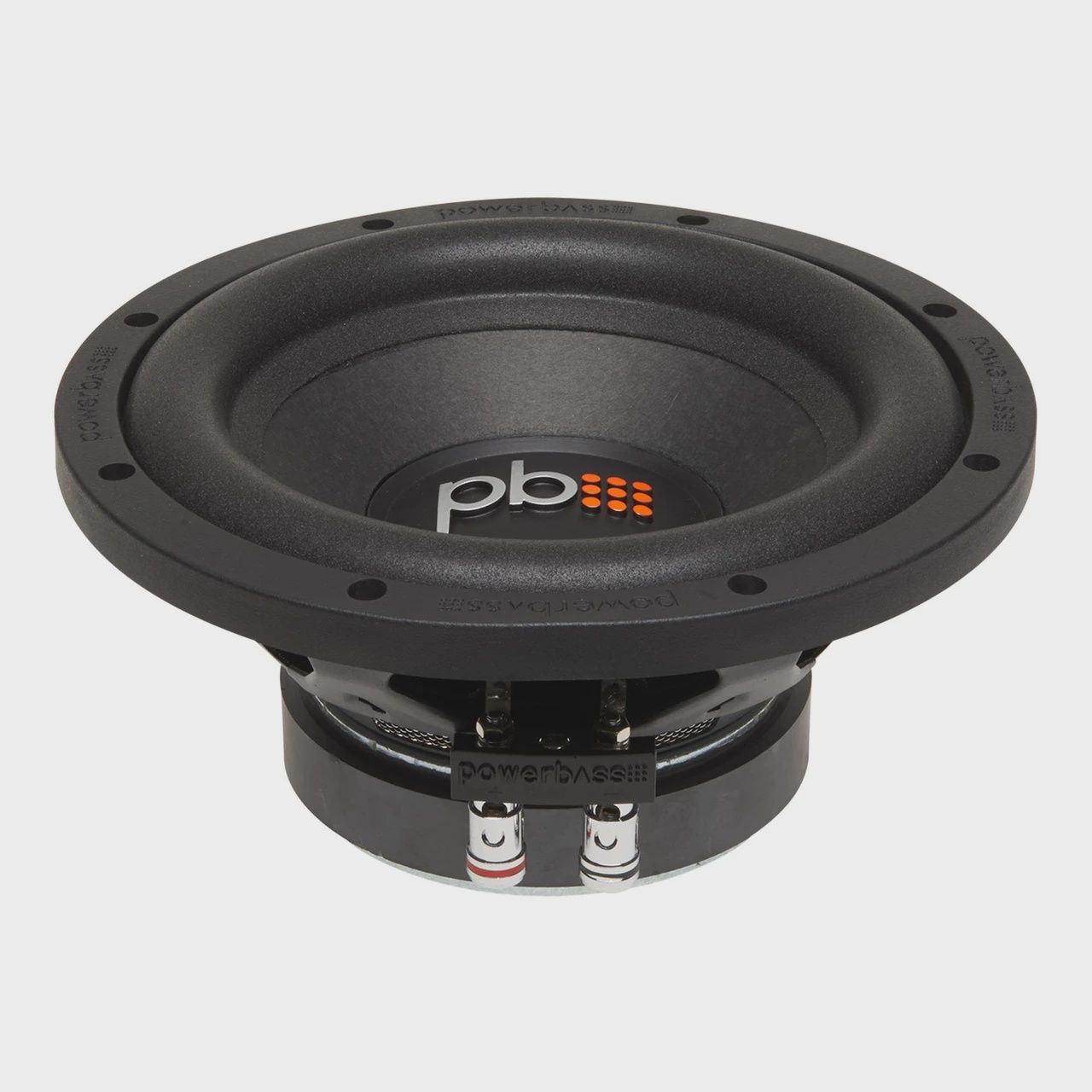

PowerBass S-84 8" Dual 4-Ohm OR Single 4-Ohm Subwoofer

PowerBass S-Series woofers, featuring a 4-layer wool/paper cone, now sport a treated non-resonant finished stamped steel basket that is custom-tooled with a distinctive X design. A 1.5” BASV voice coil former is used on the 8-inch model, along with a Large Roll foam surround for precise linear movement of the cone, delivering loud bass.

The S-Series subwoofers are well-suited for small sealed or ported enclosures and utilize dual 4-ohm and single 4-ohm voice coils, making them versatile for multiple bass applications. Now more than ever, S-Series woofers provide exceptional value without sacrificing hard-hitting performance.

Key Features:

• 8" Dual 4-Ohm / Single 4-Ohm
• 125 watt RMS / 250 Watts Max
• Proprietary DDC Coated Paper/Wool Cone
• Pressed 4-Layer Large Roll Foam Surround
• 1.5" Vented BASV Voice Coil Former
• Perimeter Aero-Vent Voice Coil Cooling Vents
• Non-Resonance DDC Coated Stamped Steel Basket
• Rubber Mounting Gasket / Trim Ring
• Chrome Push Terminals
• Optimally Designed for Both Small Sealed or Ported Enclosures

Specifications:

• Nominal Impedance: Dual 4-ohm or Single 4-Ohm
• BL: 6.4
• Inputs: Dual Coil
• Subwoofer Frequency Range: 42 Hz - 800 Hz
• Voice Coil Size: 1.5 in
• Material: Pressed Wool / Paper
• Magnet Size: 116 oz
• Sensitivity (1W / 1M): 86 dB
• Motor Structure: 116 oz
• Cutout Diameter: 7 1/8 in
• Mounting Depth: 3.5 in
• Xmax: 7 mm
• Spl: 86 dB
• No: 0.23%
• Qts: 0.46
• Qes: 0.521
• Qms: 4.3
• Mms: 51.5 g
• Cms: 279 uM/N
• Vas: 18.4 Ltr
• SD: 206.12 sqCM
• Fs: 42 Hz
• Test Impedance: 1.65-ohms
• VC Impedance: 4-ohm + 4-ohm
• Size: 8 in
• Sensitivity: 86 dB
• Frequency Response: 42 Hz - 800 Hz
• Power Handling (RMS/Peak): 125 / 250 watts

This subwoofer is designed to deliver powerful bass performance while maintaining flexibility for various installation setups.
