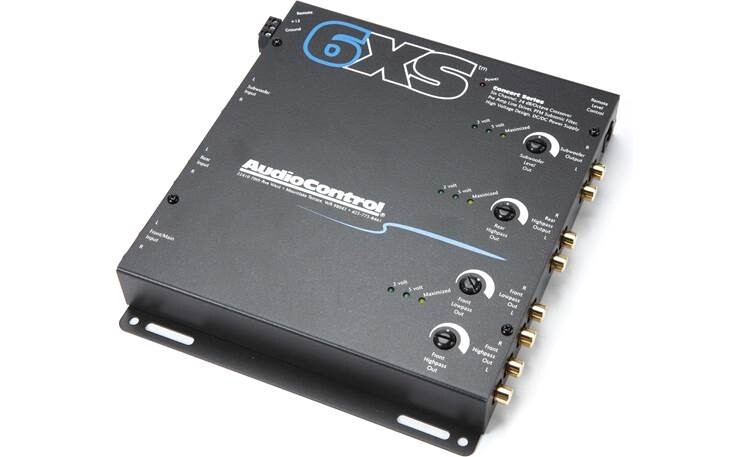

6XS AUDIOCONTROL

Product highlights:

• stereo 3-/4-way electronic crossover
• 3 pair inputs: front, rear, subwoofer
• 4 pair outputs:
  • front highpass: 250 Hz and up
  • front lowpass: 90 to 250 Hz
  • rear highpass: 250 Hz and up
  • subwoofer: 30 to 90 Hz
• 24 dB/octave Linkwitz-Riley crossover filters
• crossover frequencies user-programmable via optional AudioControl modules or user modification
• PFM subsonic filter (18-100 Hz at 18 dB/octave)
• line driver with adjustable outputs (up to 9.5 volts RMS)

Other Features:

• wired remote bass level control included
• top-mounted controls for easy adjustment
• balanced inputs eliminate noise
• frequency response: 10 to 100,000 Hz
• signal-to-noise ratio: 110 dB
• fuse rating: 2 amps
• black steel chassis with gold-plated RCA jacks
• size: 8"W x 1-3/8"H x 8-11/16"D
