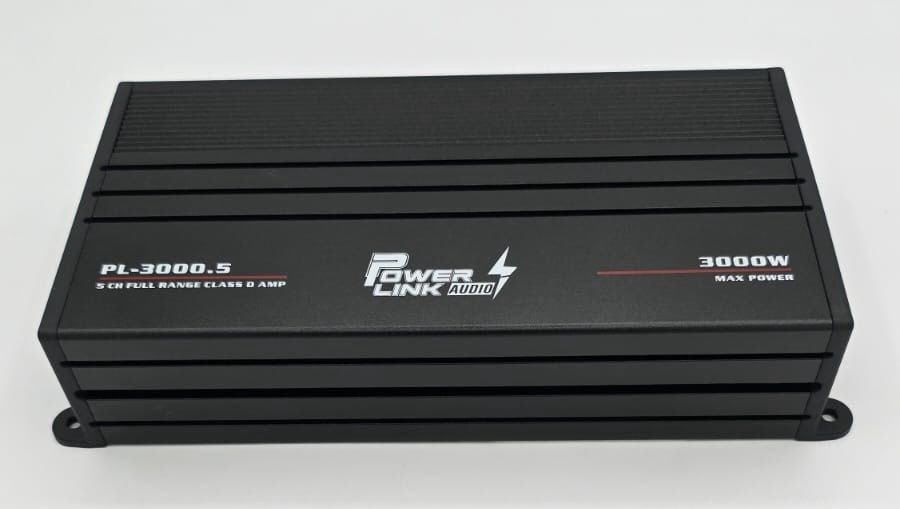

3000W PL-3000.5 POWERLINK 5CHANNEL AMPLIFIER

5 CHANNEL CLASS D MINI AMPLIFIER

PL-3000.5

150W x 4 + 500W x 1@4Ω at 13.8V

180W x 4 + 700W x 1@2Ω at 13.8V

2 x 360W@ 2Ω Bridgod at 13.8V

MAX. Power: 3000W

THD: 0.2

S/N ratio: 90dB

Frequency Response: 20Hz-20KHz(CH1-4)

/10Hz-250Hz|СH5)

Variable High Pass Filters: 15-250Hz(CH1-4)

Variable Low Pass Filters: 30Hz-300Hz(CH5)

Variable Bass Boost: OdB-16dB(CH5)

Speaker Cable, 8GA

Power Cable: 2GA

DIMENSION (mm): 260*123*55 mmm

Blue LED: Status OK

Red LED: Protect

Main features:

Mini PCB size: 219*100.6*1.6mm

Circuit topology: IR high-performance chip

IRS2092*1+MA5332*2 is used

Output power MOS tube: 30N15*4

Signal to Noise ratio: ≥90dB

FR-4 4- layer board, aluminum substrate module,

SMT process Low input, volume, high pass

Low pass filter protection function, overheating

/Overvoltage/undervoltage/load short-circuit protection
