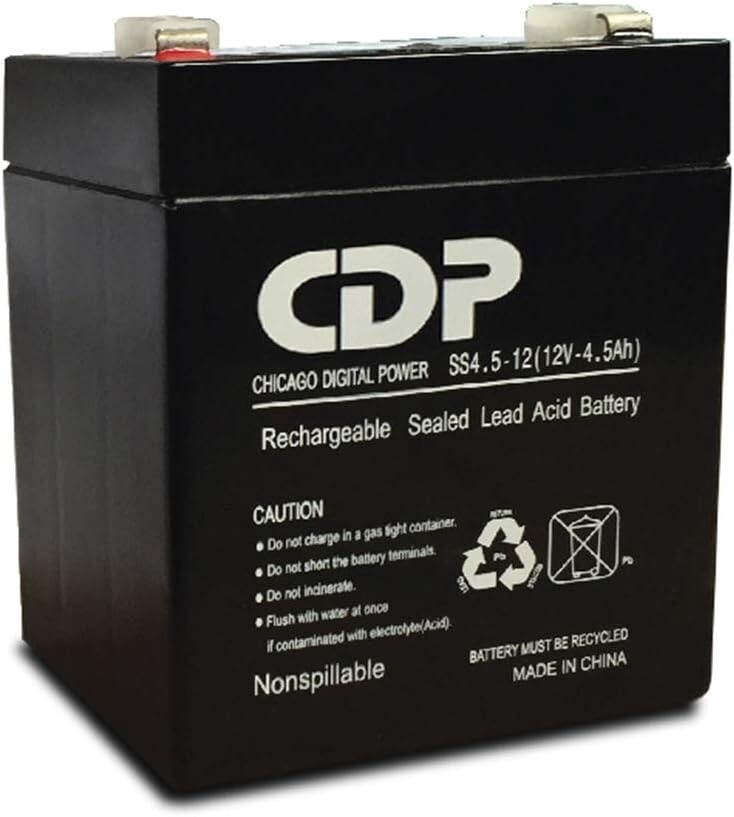

12V 4.5AH CDP BATTERY

Technical Specifications:

• Cells per Unit: 6
• Voltage per Unit: 12
• Capacity: 4.5Ah @ 20hr at 1.75V per cell @25ºC
• Maximum Discharge Current: 45A (5Sec)
• Internal Resistance: Approx. 38 mΩ
• Operating Temperature Range:
• Unloading: 20ºC60ºC
• Load: 0ºC50ºC
• Storage: -20ºC60ºC
• Normal Operating Temperature Range: 25ºC 5ºC
• Floating Charge Voltage: 13.7 to 13.9 VDC / Average unit at 25ºC
• Recommended Maximum Discharge Current: 1.35A
• Service and Equalization Cycle: 14.6 to 14.8 VDC / Average unit at 25ºC
• Terminal: Faston Tab 187(F1) / Faston Tab 250(F2)
• Material: A.B.S UL94-HB, UL94-V0 Optiona
• DIMENSIONS 2.76"D x 3.54"W x 4.21"H
